Description

HE403C-GR

– OVERVIEW –

The HE403C-GR is a 20mm micro optical sight designed for rifle and carbine applications. Features include Solar Failsafe, 12 brightness settings, Holosun’s Green Super LED with up to 50k hour battery life, and 2 MOA Dot.



In the Box

•  Lower 1/3 Cowitness Mount
•  Low Profile Mount
•  T10 L Key
•  Rubber Cover
•  User Manual
•  CR2032 Battery
•  Lens Cloth

– TECH & FEATURES –



Solar Failsafe™

Shake Awake™

Super LED

Multilayer Reflective Glass

• 2 MOA Green Dot Reticle
• Up to 50,000 Hours Battery Life (Setting 6)
• 12 Brightness Setting: 10 DL & 2 NV Compatible
• Convenient Tray Battery Compartment
• Parallax-free & Unlimited Eye Relief

– SPECIFICATION –



OPTICAL DATA

• Reticle2 MOA Dot
• Light Wavelength540nm
• Reticle ColorGreen
• Parallax FreeYes
• Unlimited Eye ReliefYes
• Magnification1x
• Multi-CoatingsYes

ELECTRONIC DATA

• Power SourceSolar & Battery
• Battery TypeCR2032
• Battery Life (Hours)50000
• Brightness Setting10 DL&2 NV

MECHANICAL DATA

• Housing Material6061 T6 Aluminum
• Surface FinishMAO
• Adjustment per Click0.5 MOA
• W&E Travel Range±50 MOA

PHYSICAL DATA

• Window Size20mm Diameter

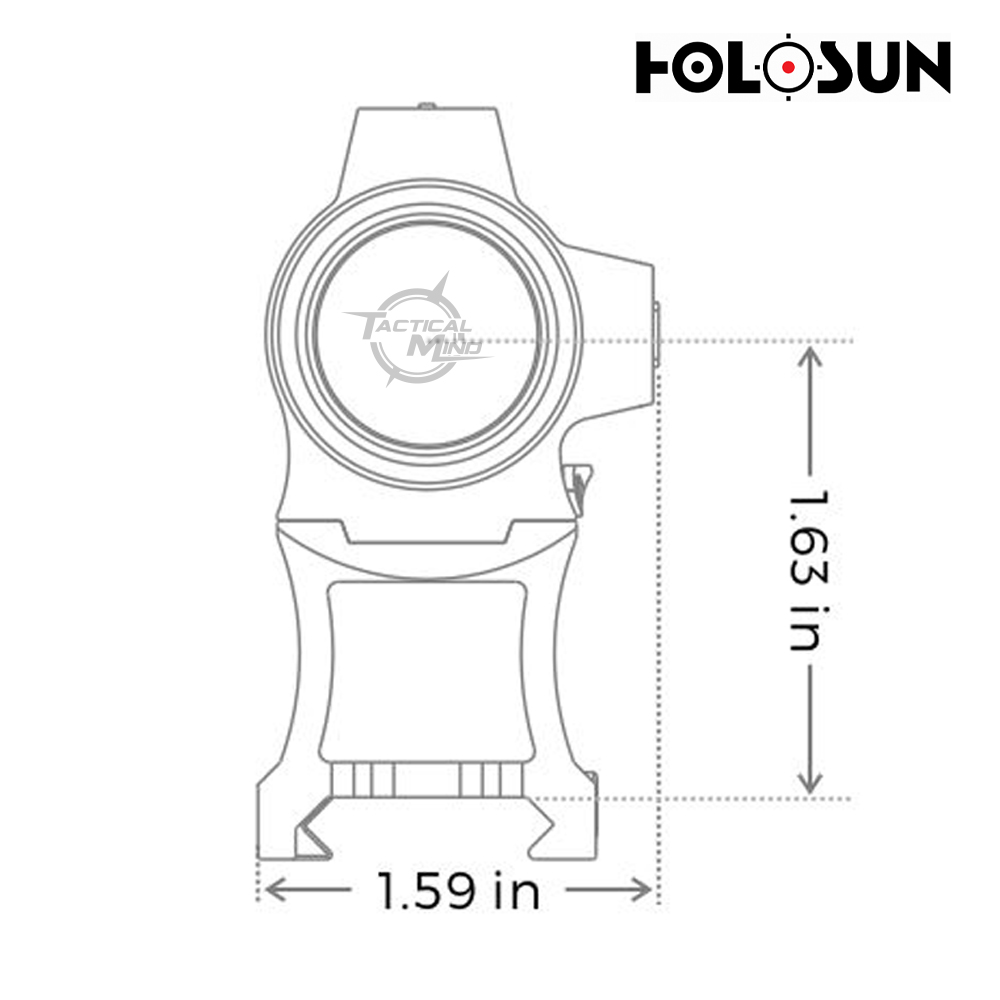

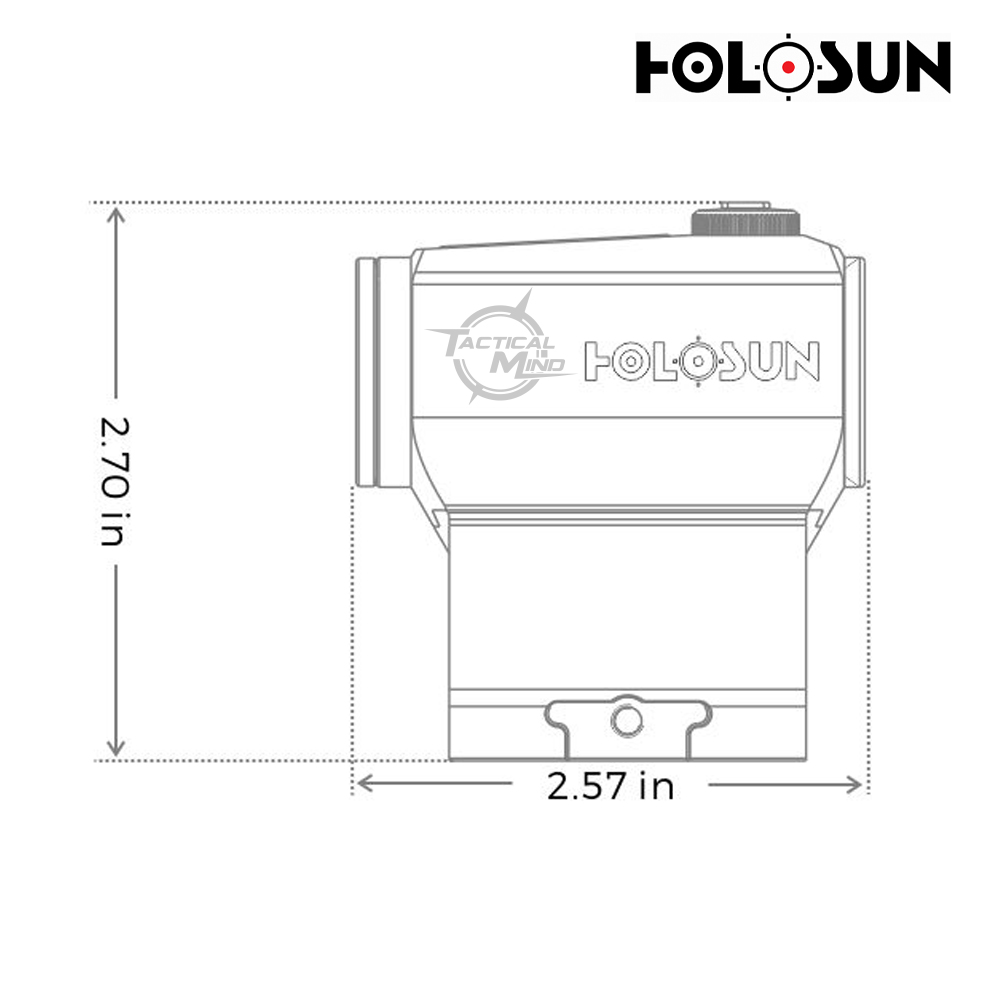

• Dimension (in)2.45×1.43×1.6
• Weight (oz)2.82

ENVIRONMENT DATA

• Storage Temperature-40℃~70℃
• Working Temperature-30℃~60℃
• SubmersionIP67
• Vibration1000G
