Description

HE403R-GD

– OVERVIEW –

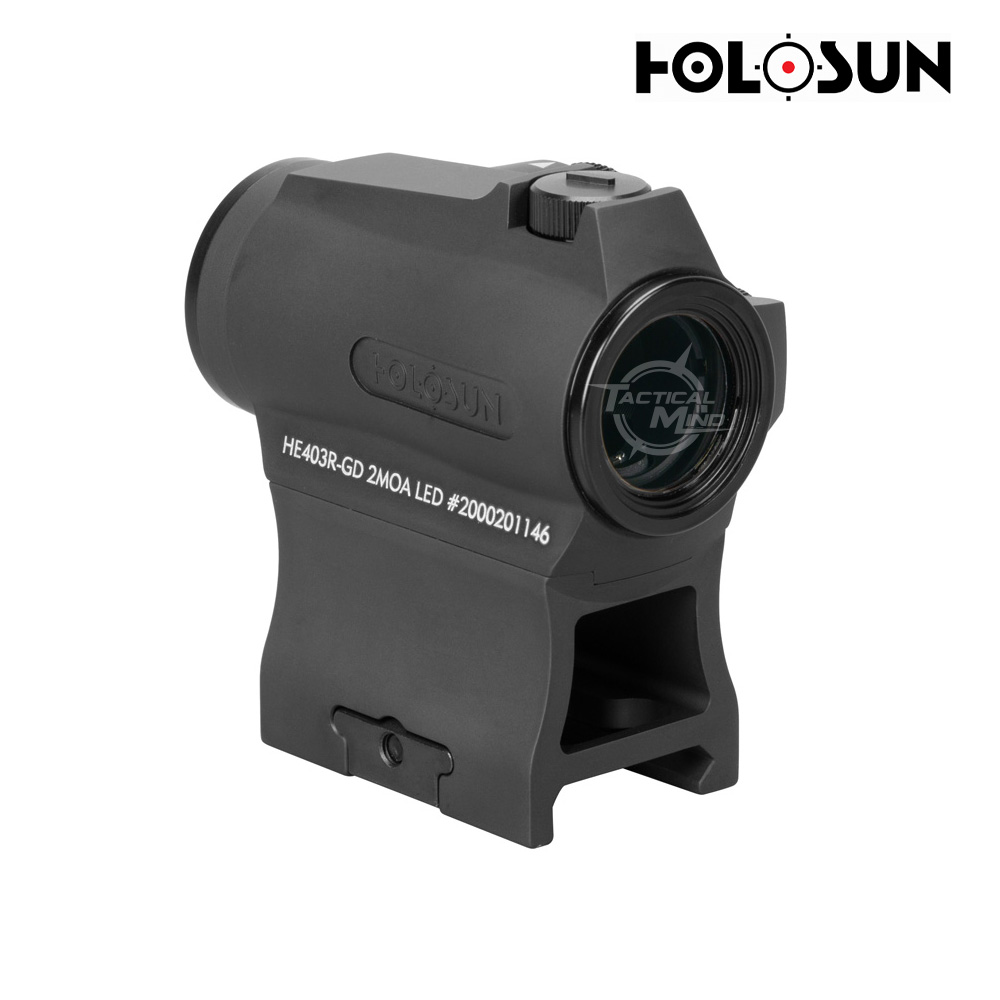

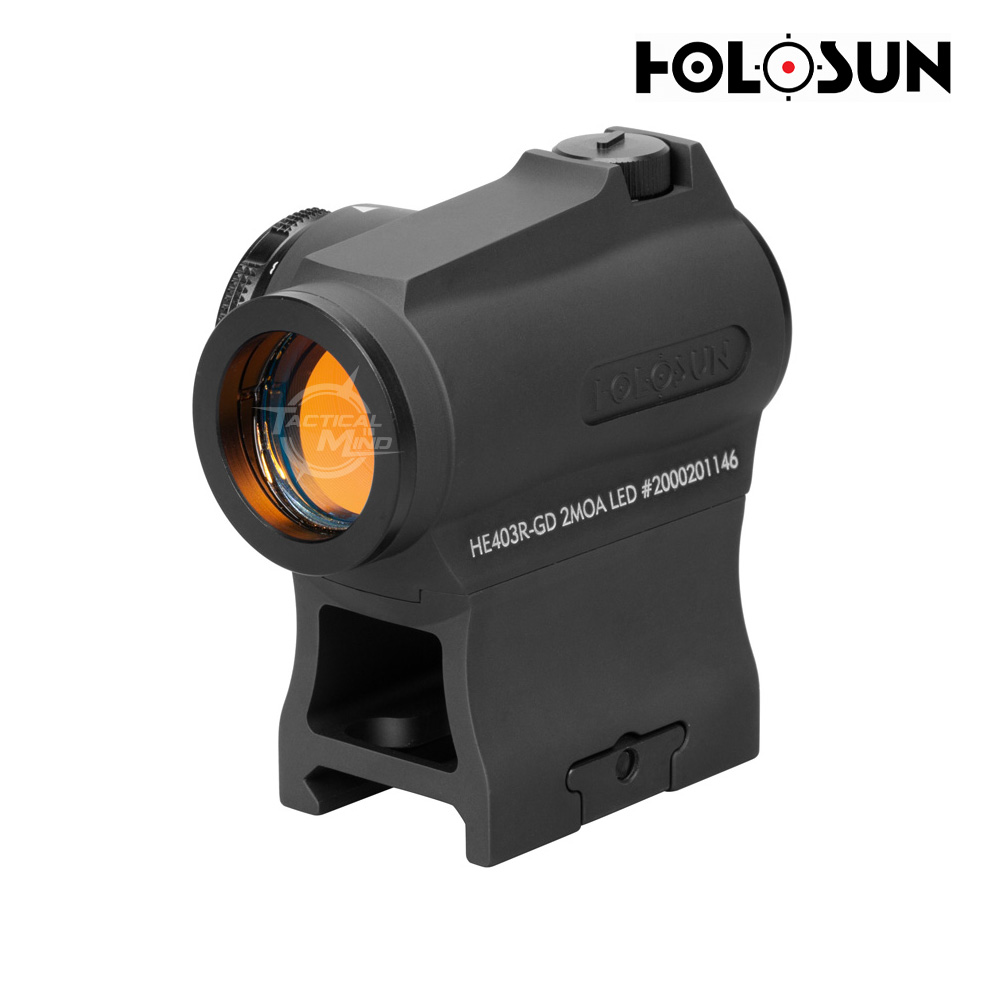

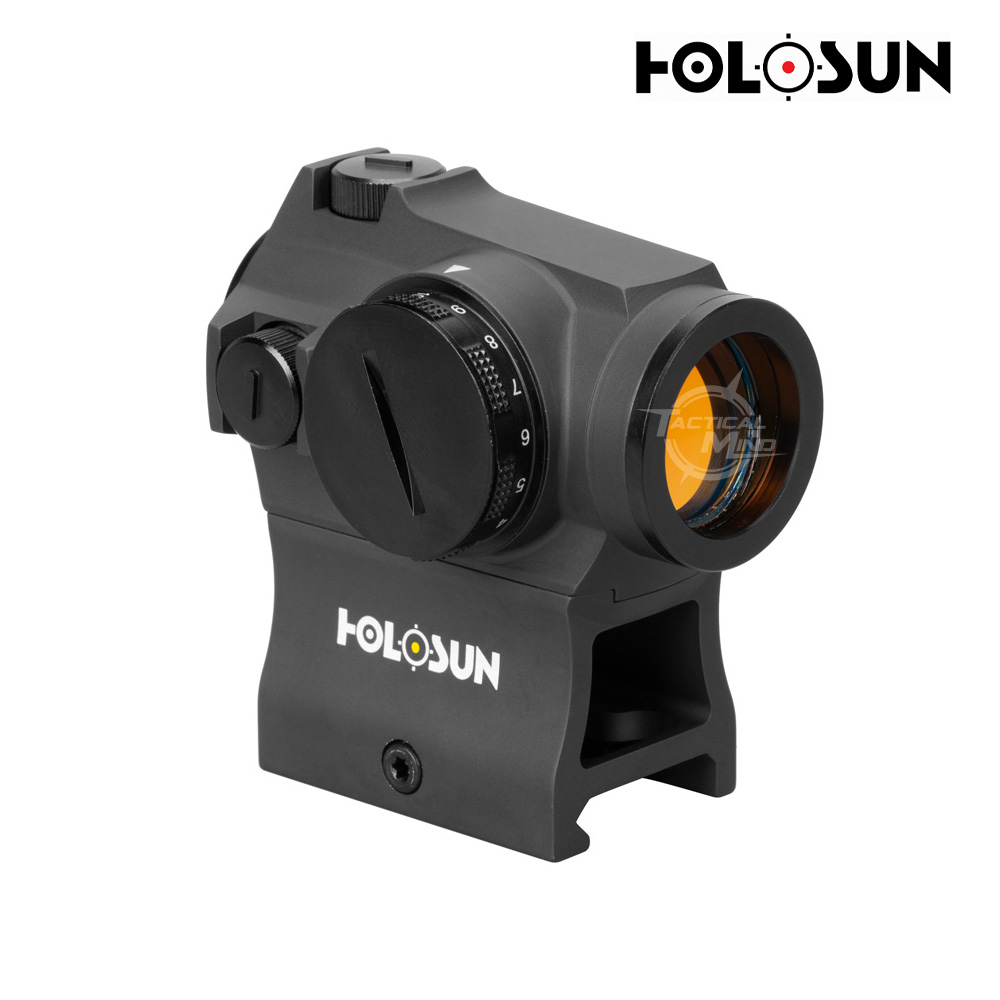

The HE403R-GD is a 20mm micro optical sight designed for rifle and carbine applications.



Features include our new Rotary Switch, 12 brightness settings, Holosun’s Gold Super LED with up to 100k hours battery life, and 2 MOA Dot.



– TECH & FEATURES –



Super LED

Multilayer Reflective Glass

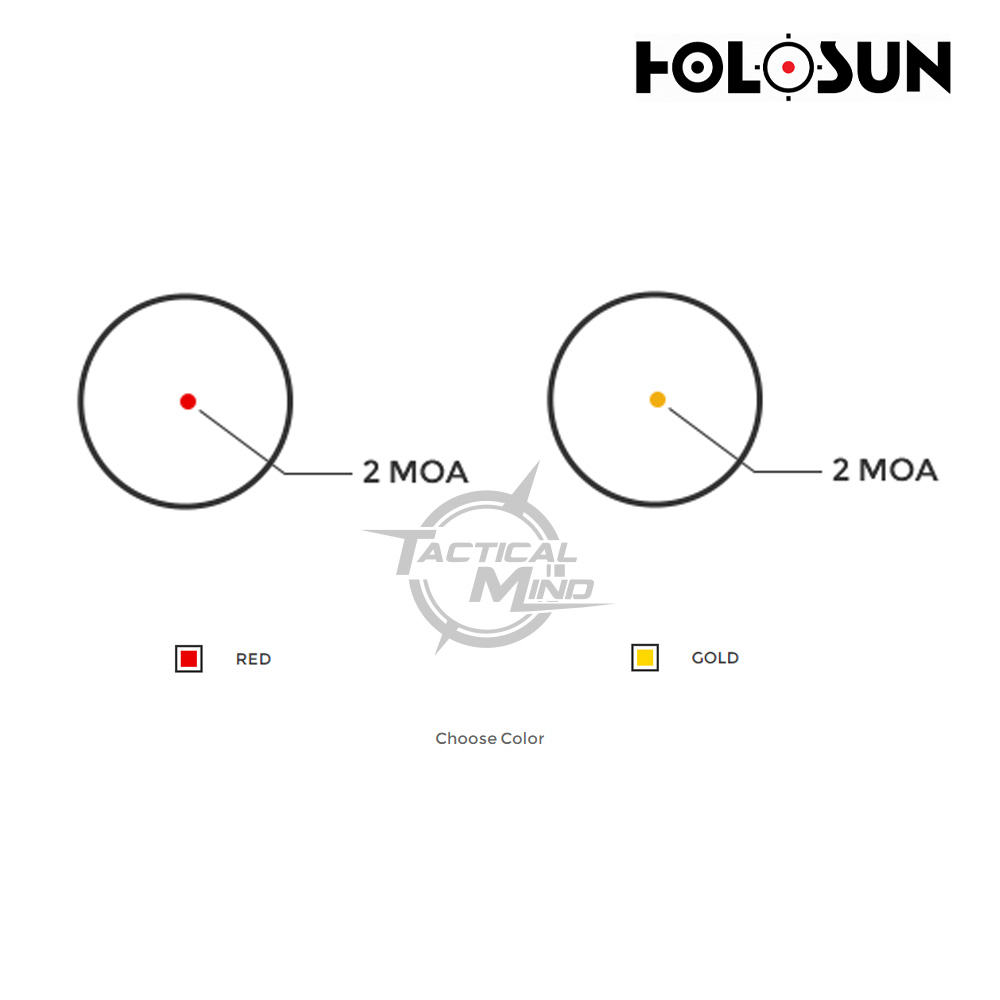

• 2 MOA Gold Dot Reticle
• Up to 100,000 Hours Battery Life (Setting 6)
• 12 Brightness Setting: 10 DL & 2 NV Compatible

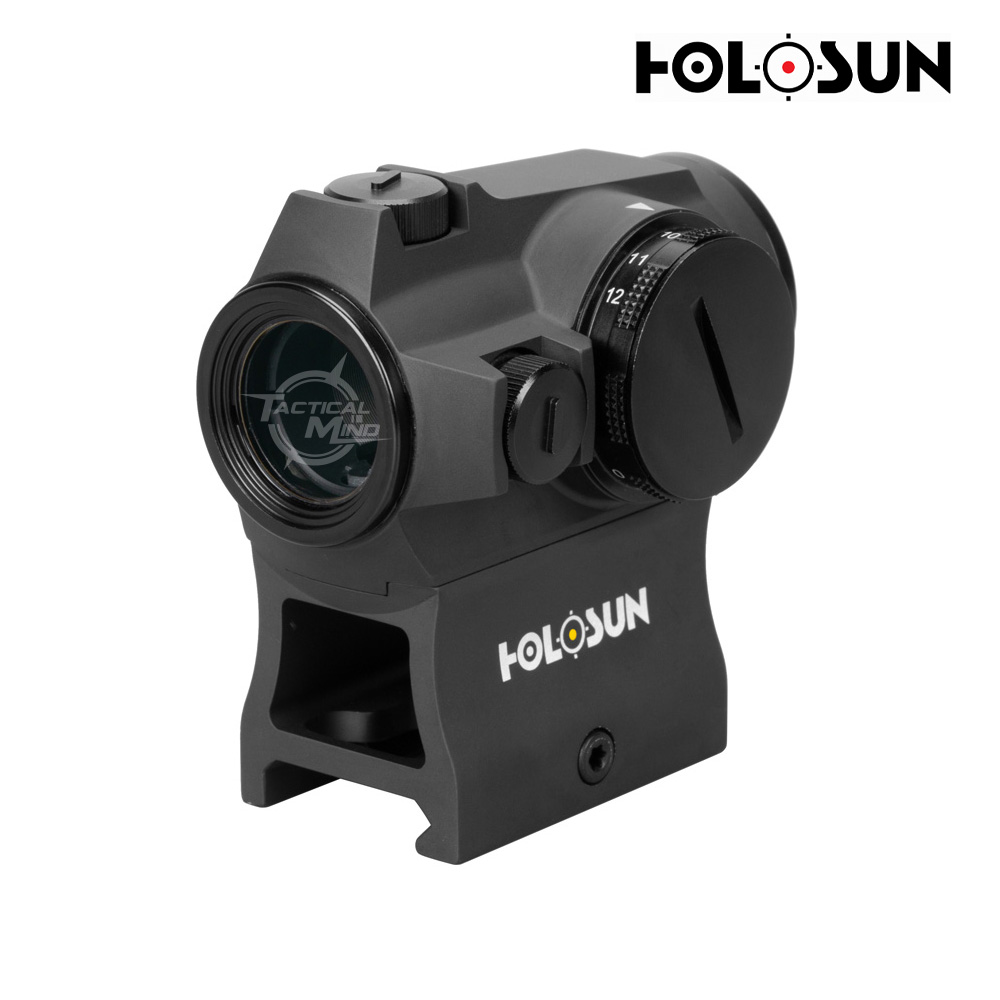

• Rotary Switch with Integrated Battery Compartment
• Parallax-free & Unlimited Eye Relief

– SPECIFICATION –



OPTICAL DATA

• Reticle2 MOA Dot
• Light Wavelength590nm
• Reticle ColorGold
• Parallax FreeYes
• Unlimited Eye ReliefYes
• Magnification1x
• Multi-CoatingsYes

ELECTRONIC DATA

• Power SourceBattery
• Battery TypeCR2032
• Battery Life (Hours)100000
• Brightness Setting10 DL&2 NV

MECHANICAL DATA

• Housing MaterialDurable Aluminum
• Surface FinishMAO
• Adjustment per Click0.5 MOA
• W&E Travel Range±50 MOA

PHYSICAL DATA

• Window Size20mm Diameter

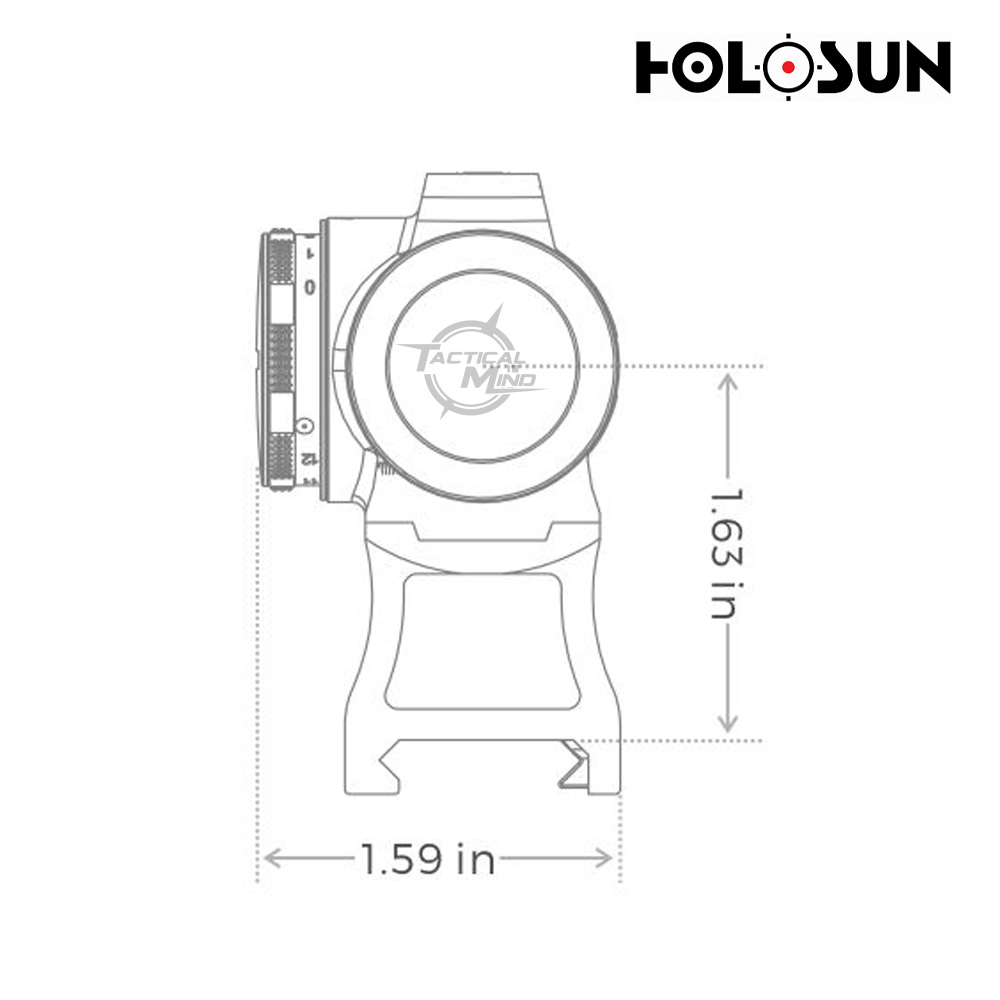

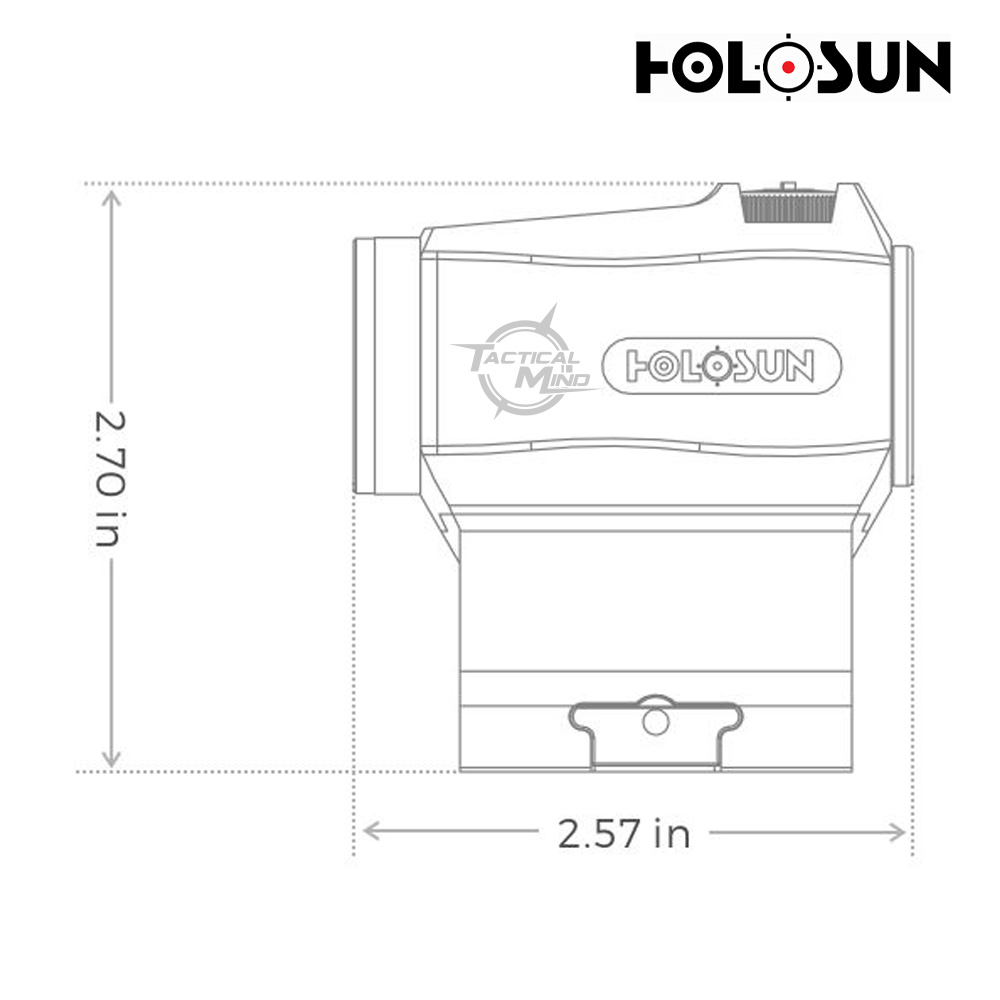

• Dimension (in)2.75×1.43×1.62
• Weight (oz)3.53

ENVIRONMENT DATA

• Storage Temperature-40℃~70℃
• Working Temperature-30℃~60℃
• SubmersionIP67
• Vibration1000G
