Description

HE407K-GR X2

– OVERVIEW –

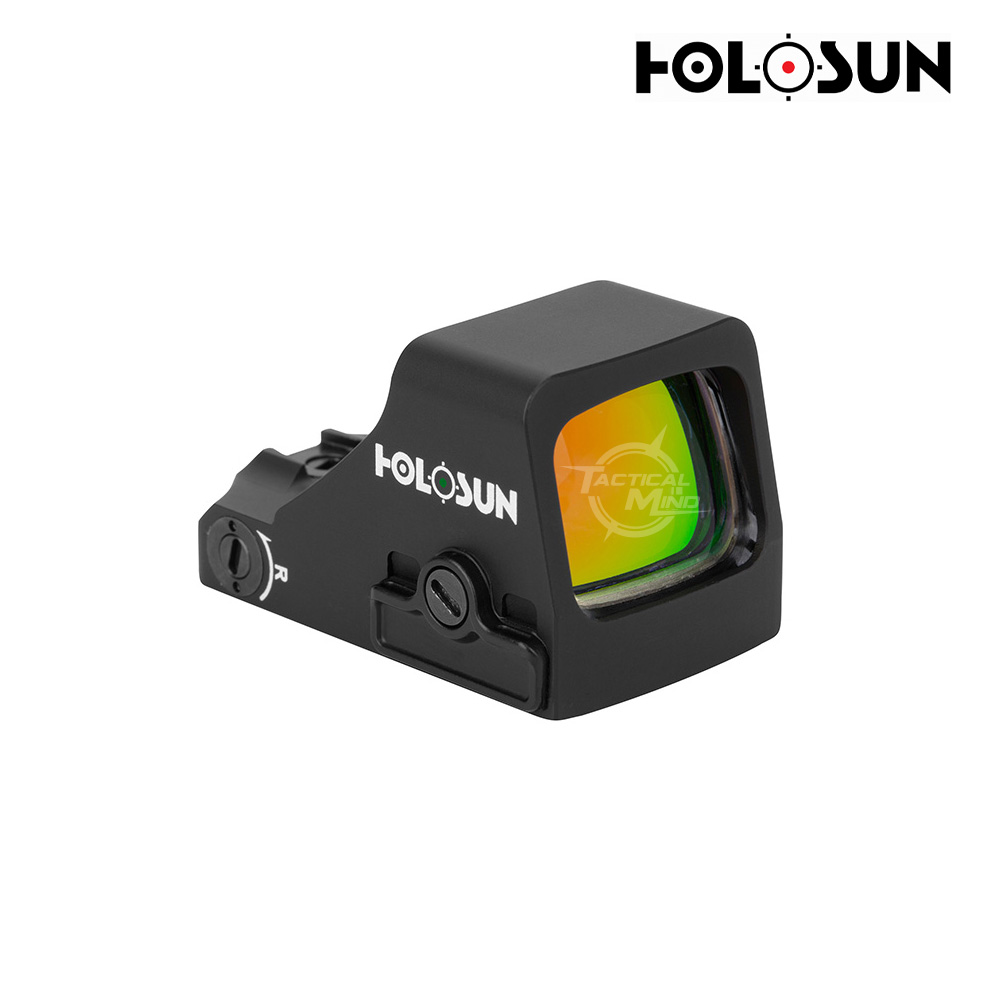

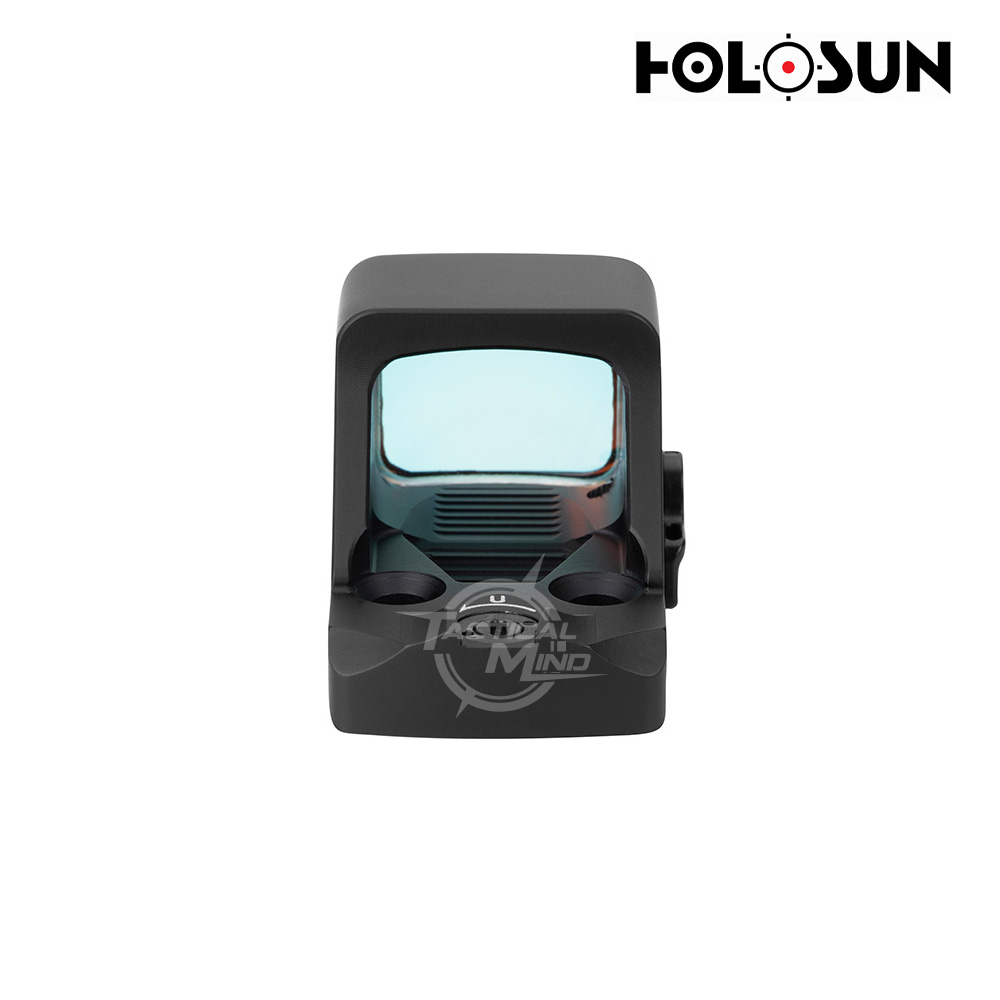

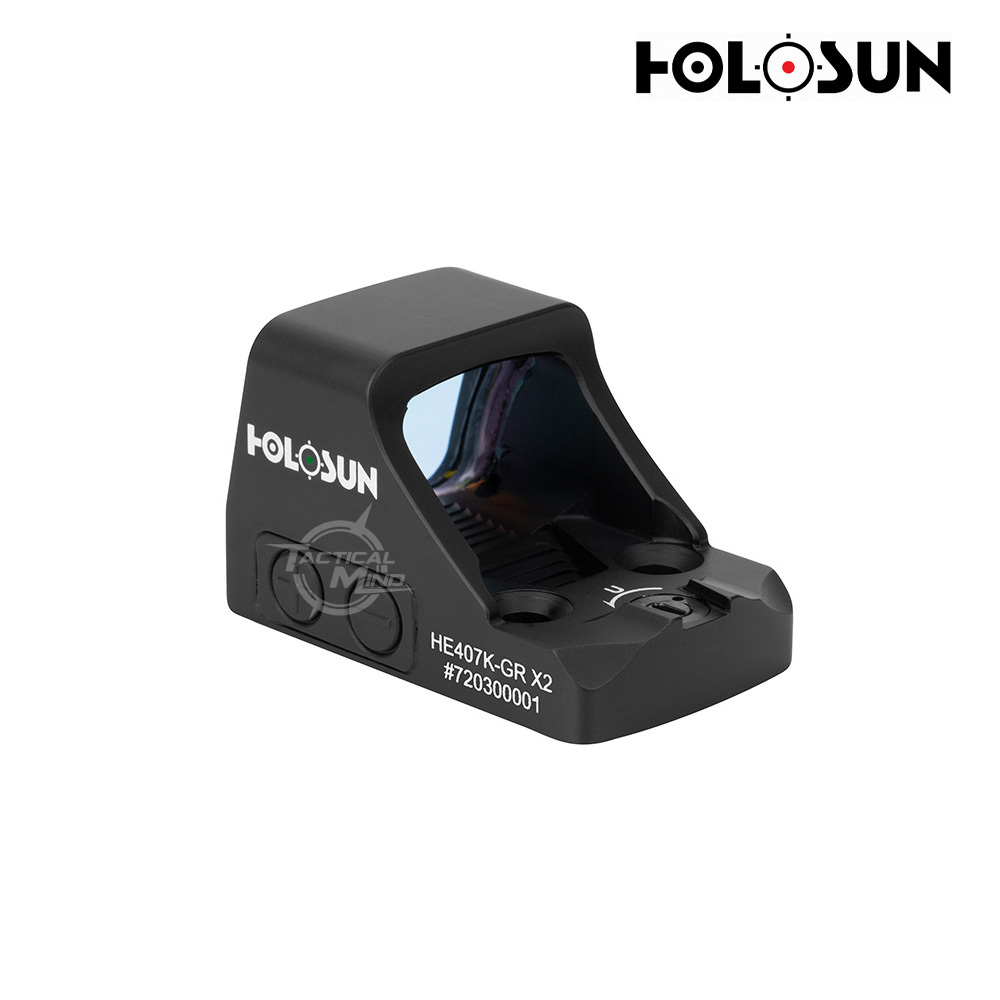

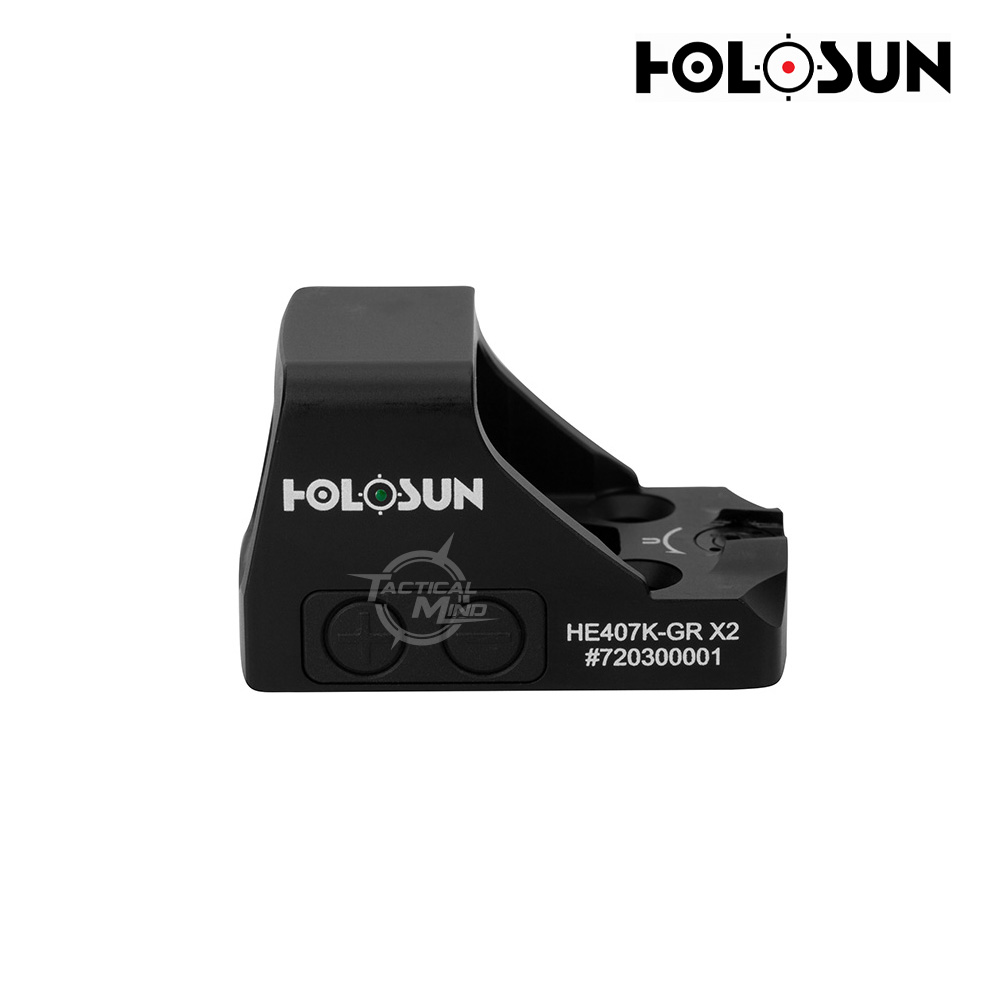

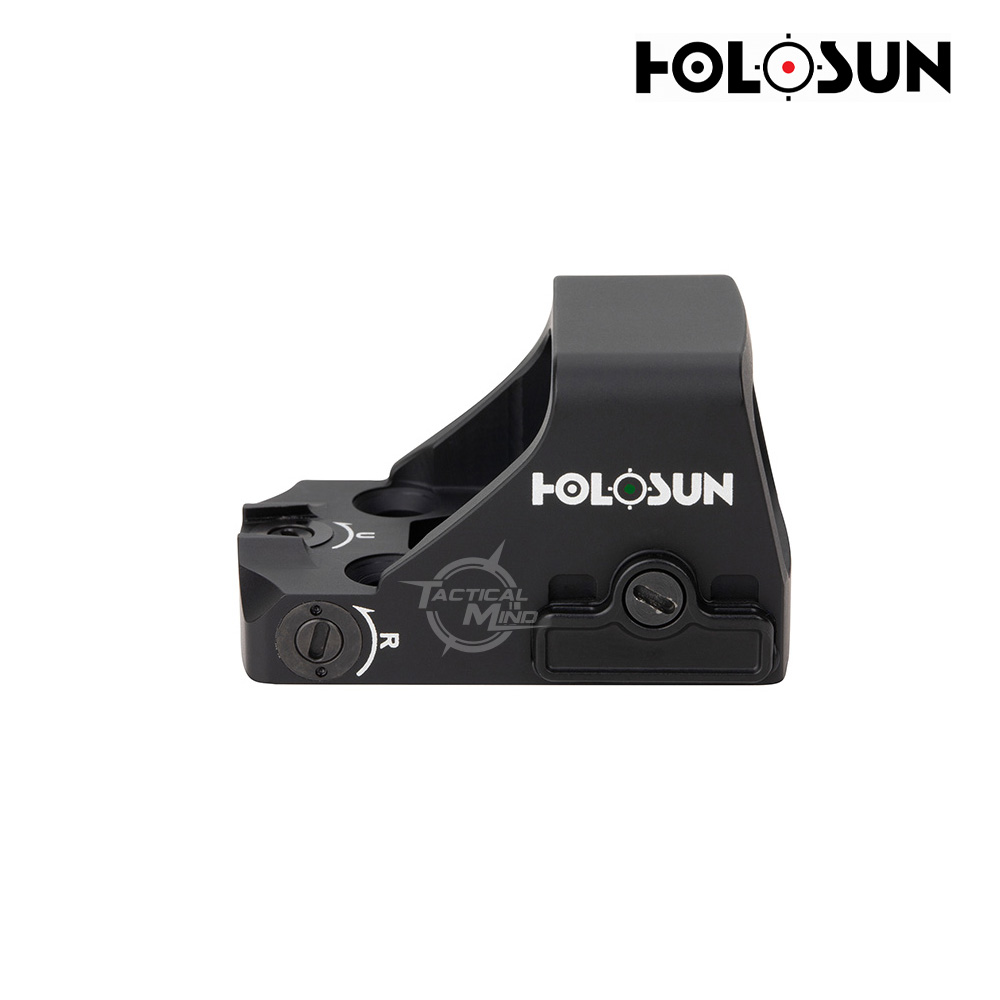

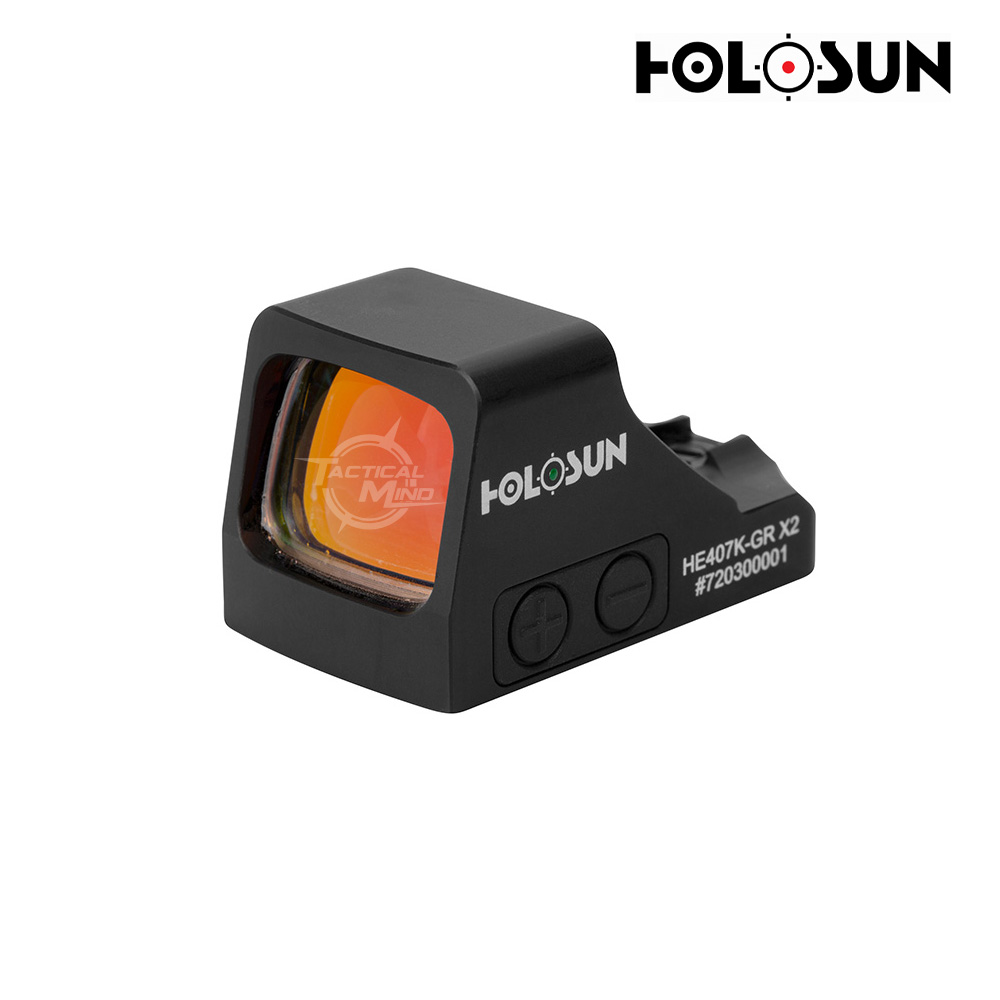

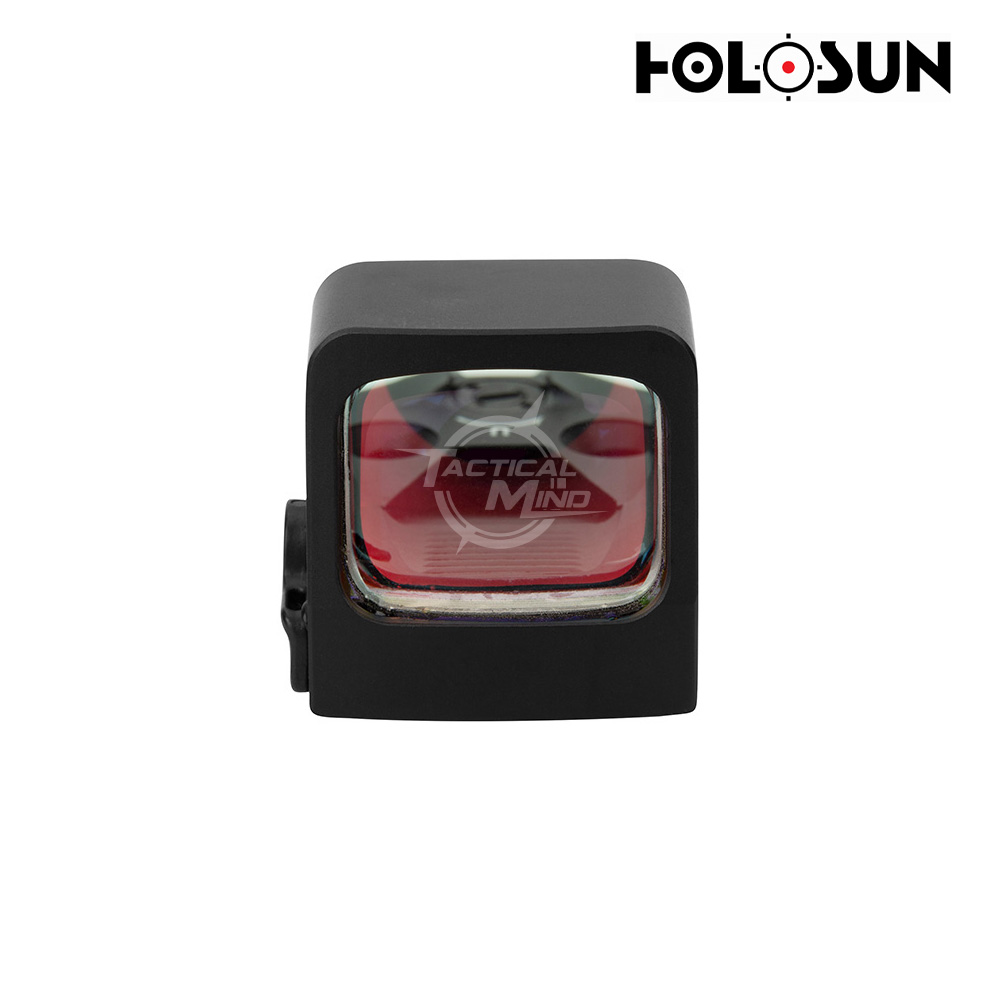

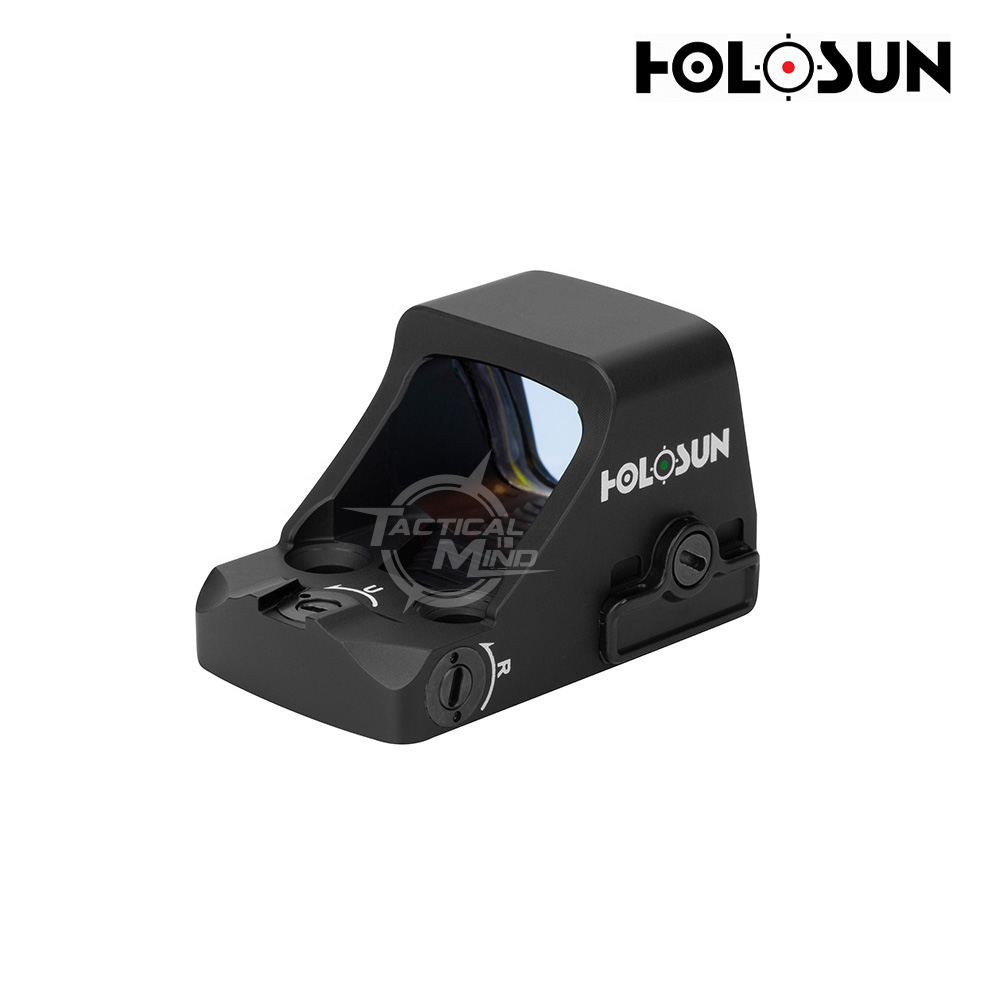

The HE407K-GR X2 is an open reflex optical sight designed for concealed carry pistol applications.

The X2 Series pistol optics feature two improvements. First is the addition of Lock Mode from our 2018-2019 LE pistol optic models. Lock Mode, when activated, locks the buttons preventing inadvertent setting changes. Second, the buttons have been redesigned to compliment the Lock Mode by placing them lower and out of the way. Additional features include Holosun’s Super Green LED with up to 50k hours battery life, and Shake Awake.

In the Box

•  Multi Tool
•  User Manual
•  Lens Cloth

– TECH & FEATURES –

Shake Awake™

Super LED

Multilayer Reflective Glass

• 6 MOA Green Dot Reticle
• Up to 50,000 Hours Battery Life (Setting 6)
• 12 Brightness Setting: 10 DL & 2 NV Compatible
• Convenient Side-mounted Battery Compartment
• Parallax-free & Unlimited Eye Relief

– SPECIFICATION –

OPTICAL DATA

• Reticle6 MOA Dot
• Light Wavelength540nm
• Reticle ColorGreen
• Parallax FreeYes
• Unlimited Eye ReliefYes
• Magnification1x
• Multi-CoatingsYes


  ELECTRONIC DATA

  • Power SourceBattery
  • Battery TypeCR1632
  • Battery Life (Hours)50000
  • Brightness Setting10 DL&2 NV

MECHANICAL DATA

• Housing Material7075 T6 Aluminum
• Surface FinishAnodize
• Adjustment per Click1 MOA
• W&E Travel Range±30 MOA

PHYSICAL DATA

• Window Size0.58×0.77

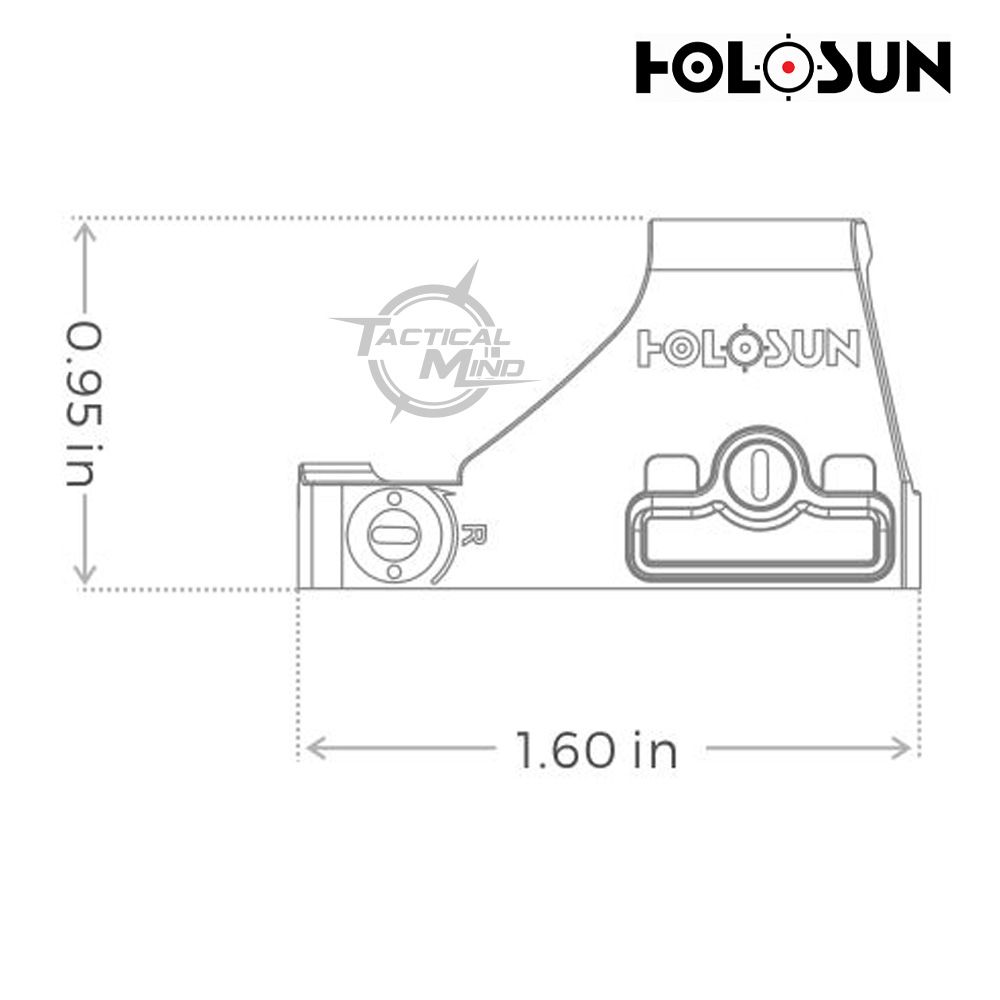

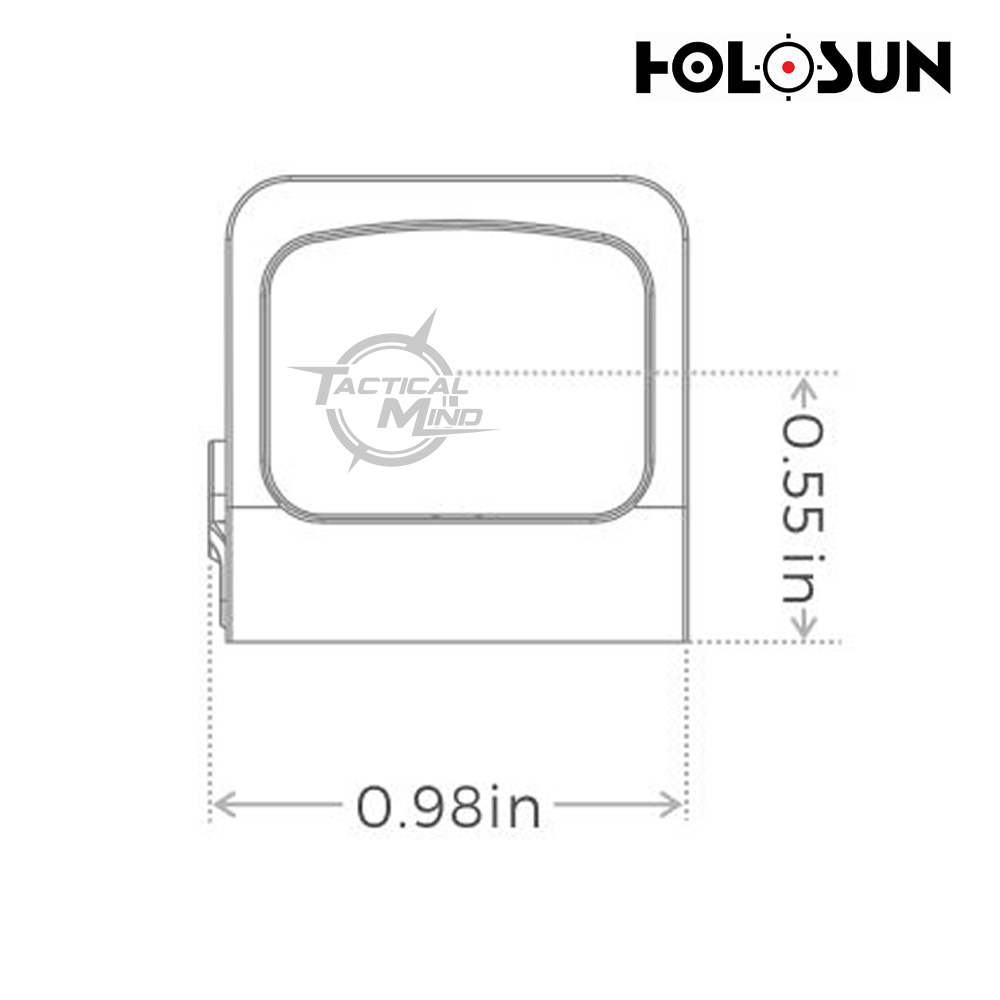

• Dimension (in)1.6×0.98×0.95
• Weight (oz)1

ENVIRONMENT DATA

• Storage Temperature-40℃~70℃
• Working Temperature-30℃~60℃
• SubmersionIP67
• Vibration5000G
