Description

HE503CU-GR

– OVERVIEW –

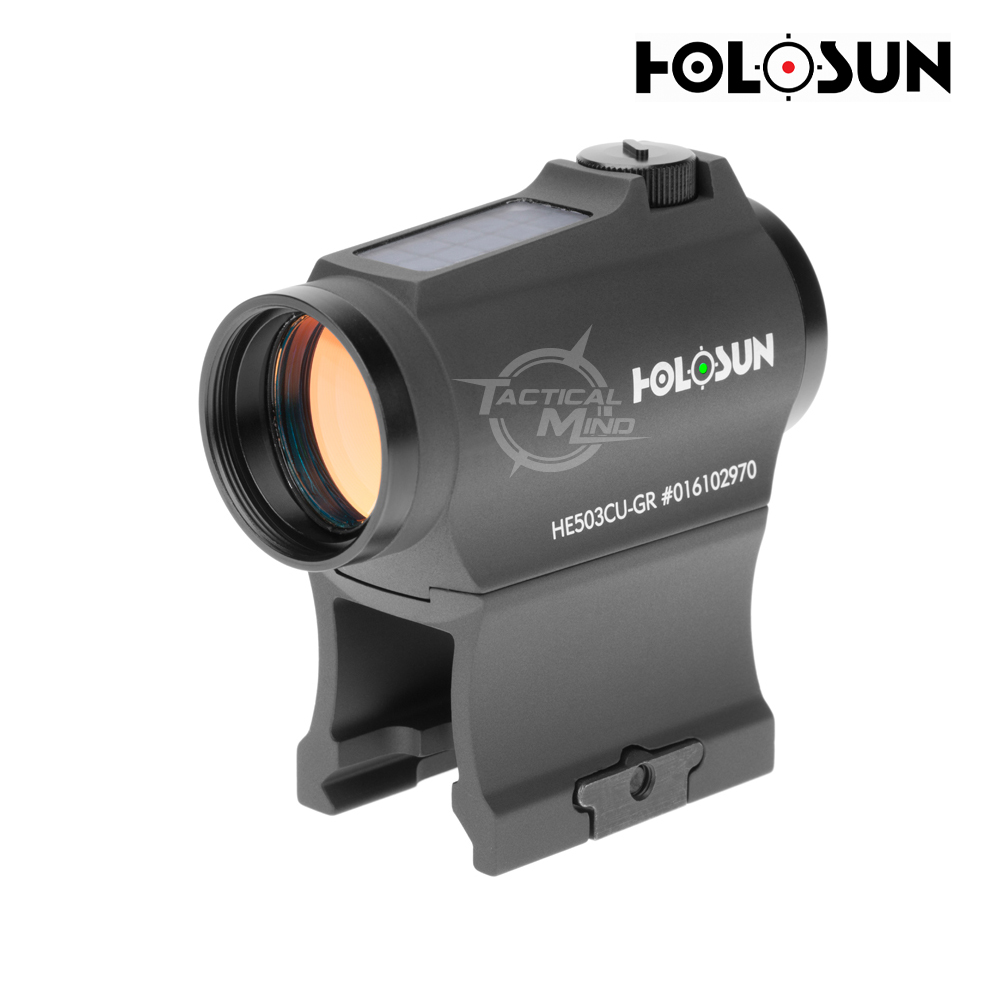

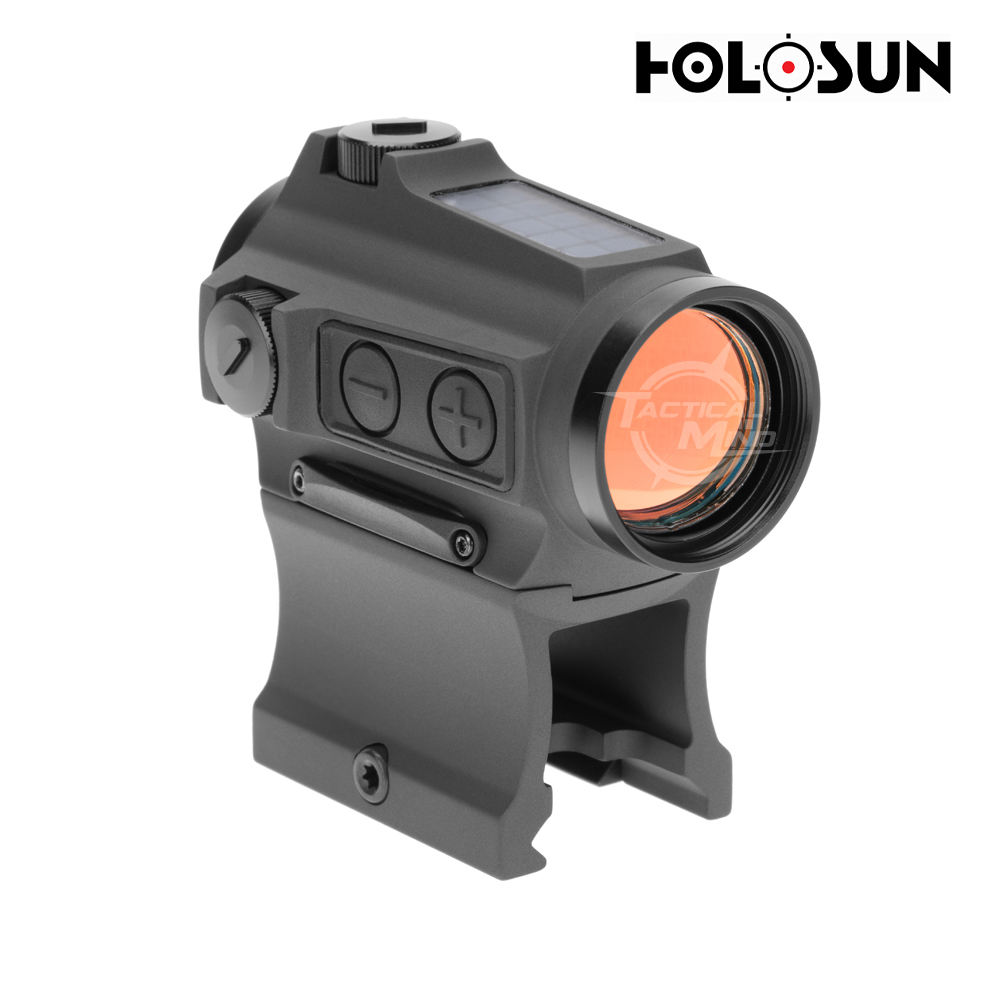

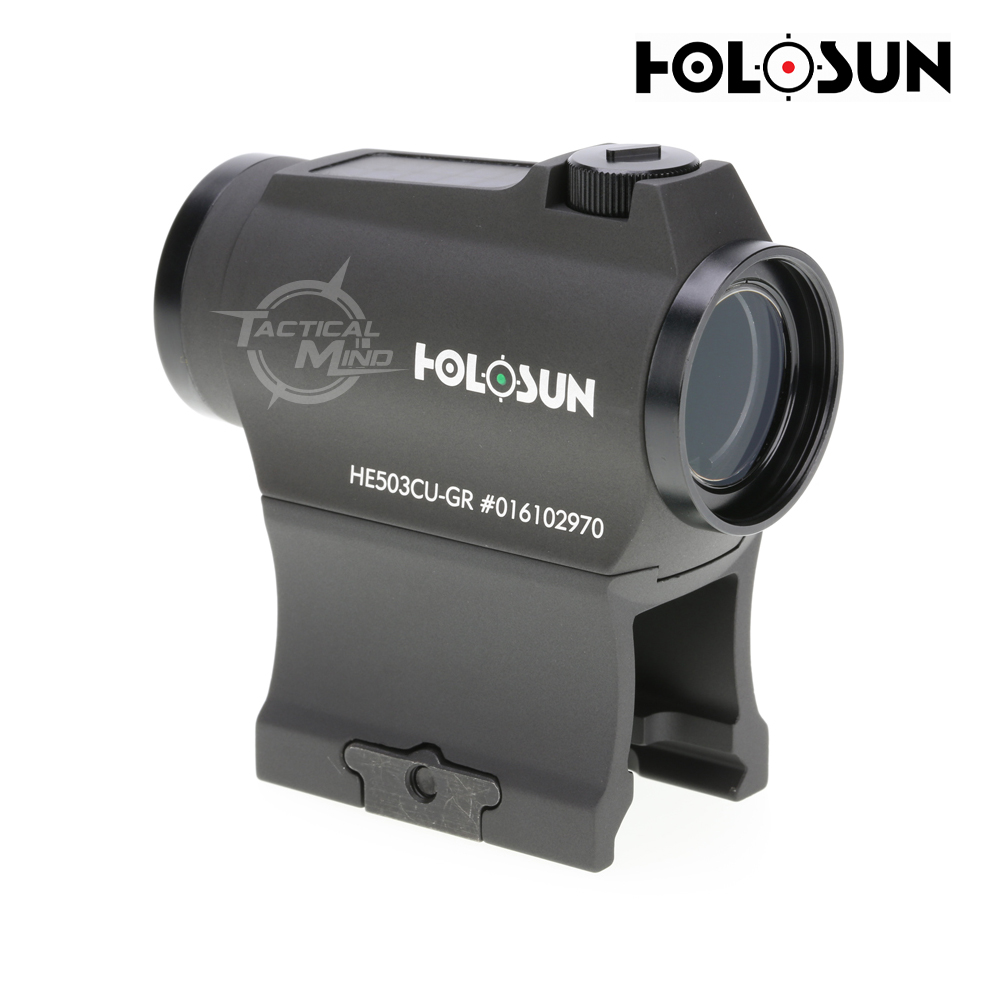

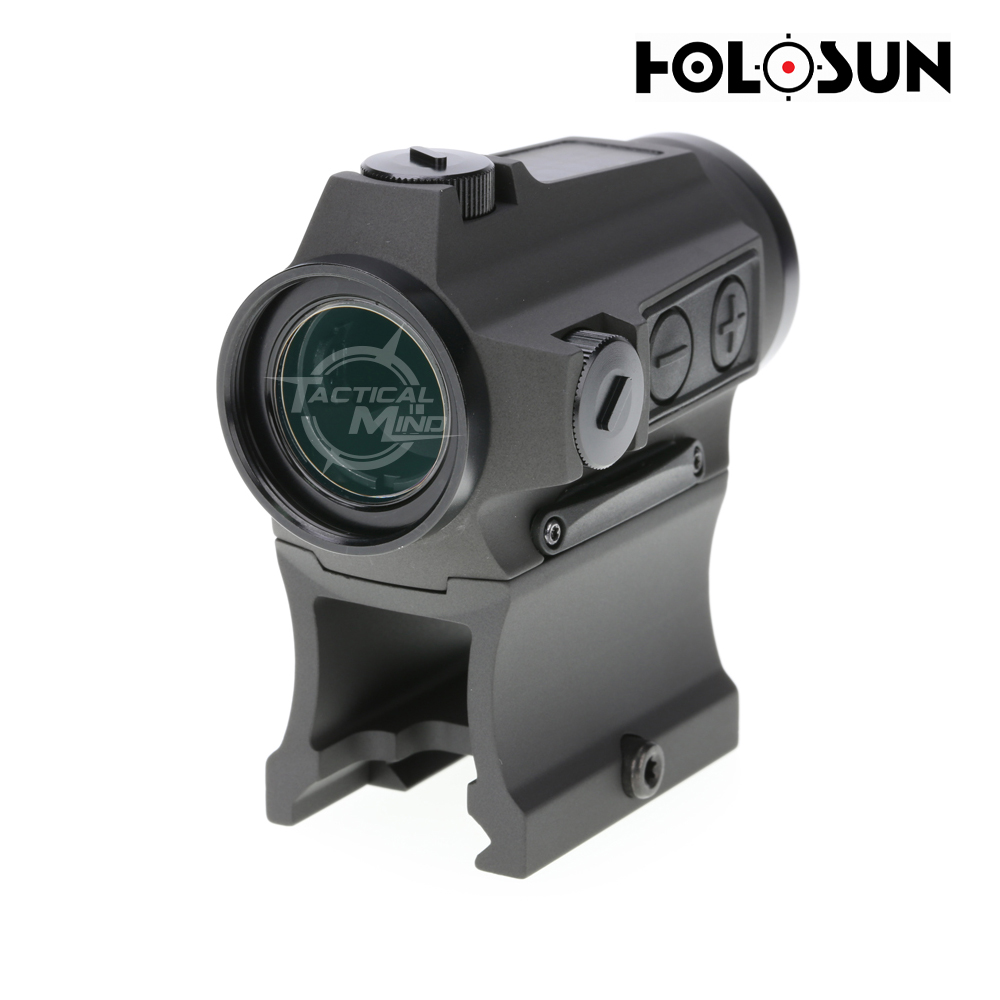

The HE503CU-GR is a 20mm micro optical sight designed for rifle and carbine applications.

Features include Solar Failsafe, Shake Awake, 12 brightness settings, Holosun’s Green Super LED with up to 50k hours battery life, and Multi-Reticle System



In the Box

•  Lower 1/3 Cowitness Mount
•  Low Profile Mount
•  T10 L Key
•  Rubber Cover
•  User Manual
•  CR2032 Battery
•  Lens Cloth

– TECH & FEATURES –

Solar Failsafe™

Shake Awake™

Multiple Reticle System

Super LED

Multilayer Reflective Glass

• Green MRS:2 MOA Dot; 2 MOA Dot & 65 MOA Circle
• Up to 50,000 Hours Battery Life (Setting 6)
• 12 Brightness Setting: 10 DL & 2 NV Compatible
• Convenient Tray Battery Compartment
• Parallax-free & Unlimited Eye Relief

– SPECIFICATION –

OPTICAL DATA

• Reticle2 MOA Dot & 65 MOA Circle
• Light Wavelength540nm
• Reticle ColorGreen
• Parallax FreeYes
• Unlimited Eye ReliefYes
• Magnification1x
• Multi-CoatingsYes

ELECTRONIC DATA

• Power SourceSolar & Battery
• Battery TypeCR2032
• Battery Life (Hours)50000
• Brightness Setting10 DL&2 NV

PHYSICAL DATA

• Window Size20mm Diameter

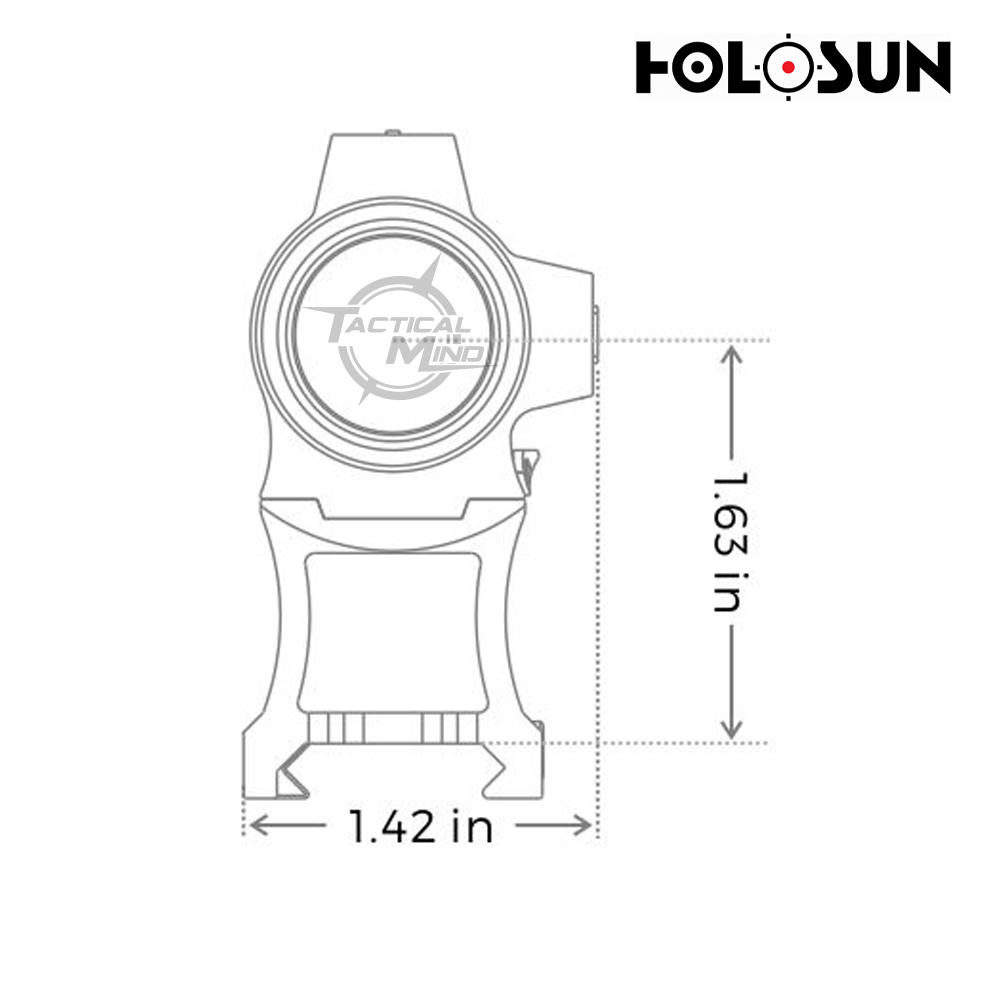

• Dimension (in)2.6×1.43×1.6
• Weight (oz)3

ENVIRONMENT DATA

• Storage Temperature-40℃~70℃
• Working Temperature-30℃~60℃
• SubmersionIP67
• Vibration1000G
