HE509T-(GR/RD) X2

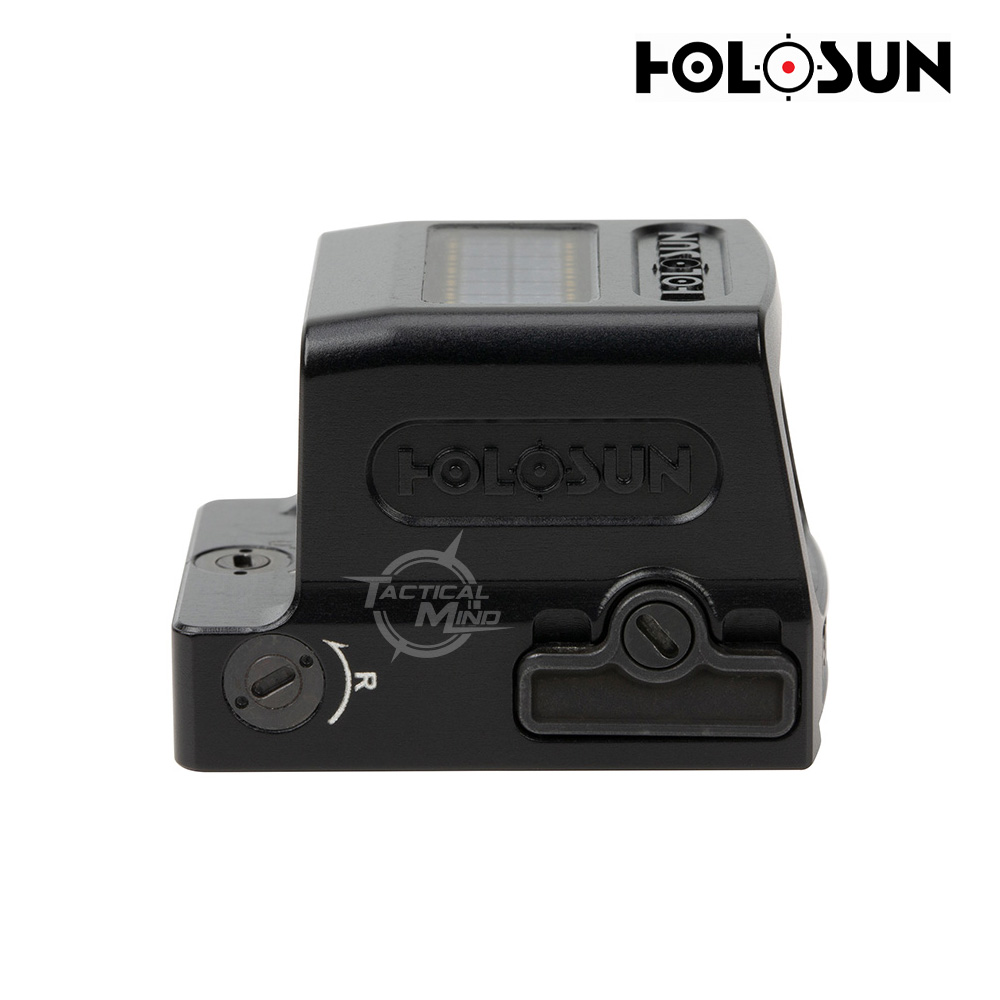

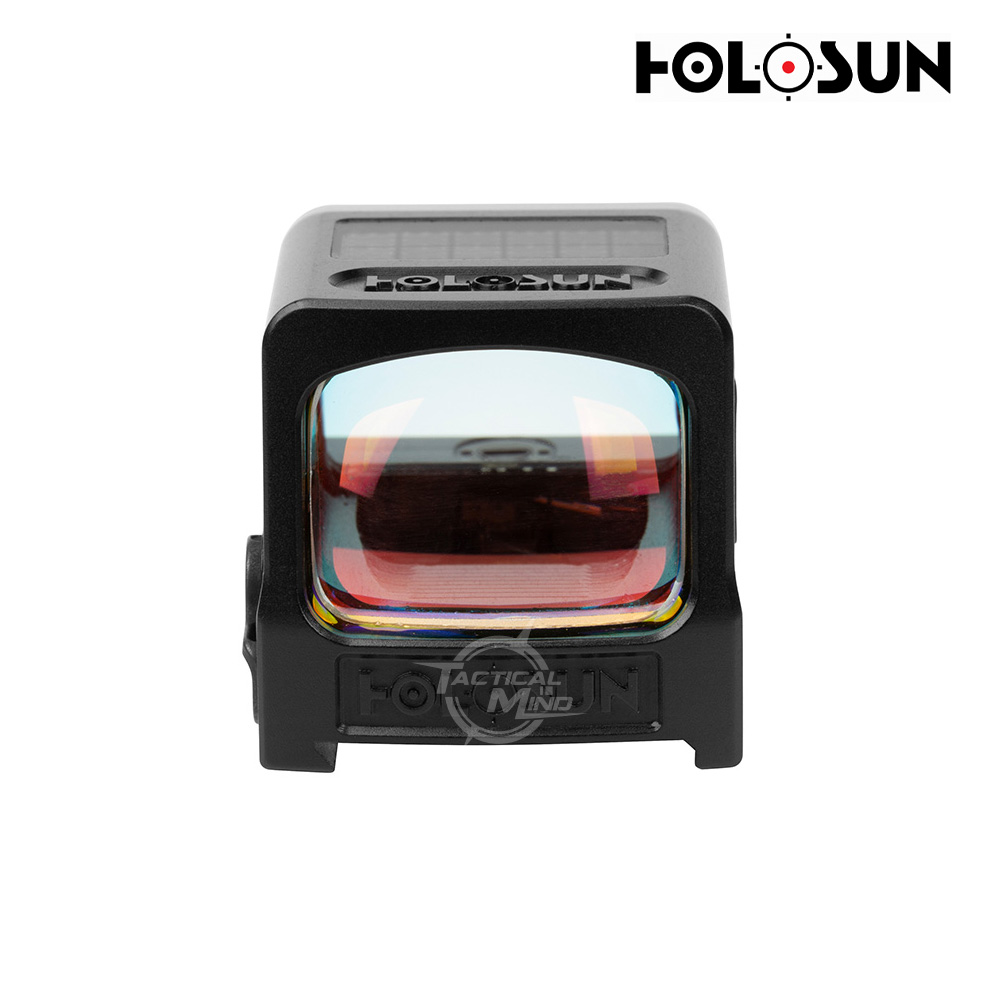

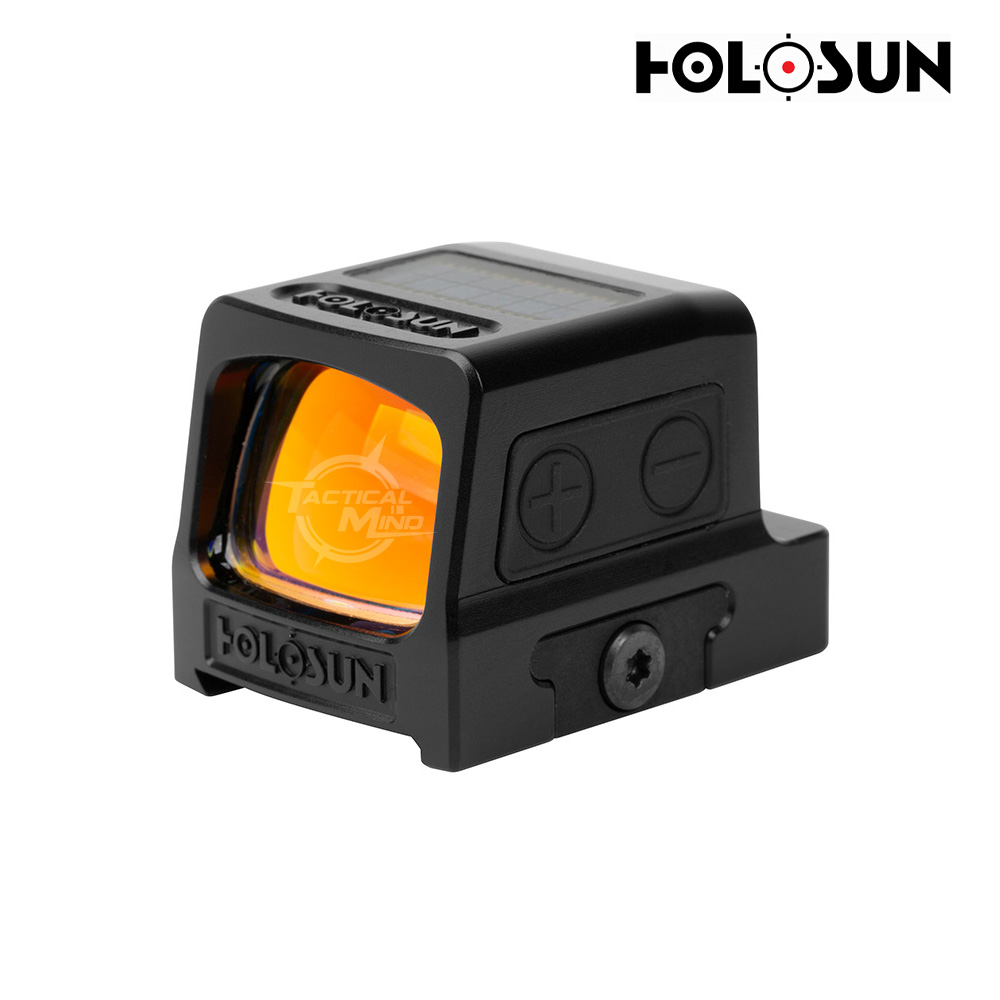

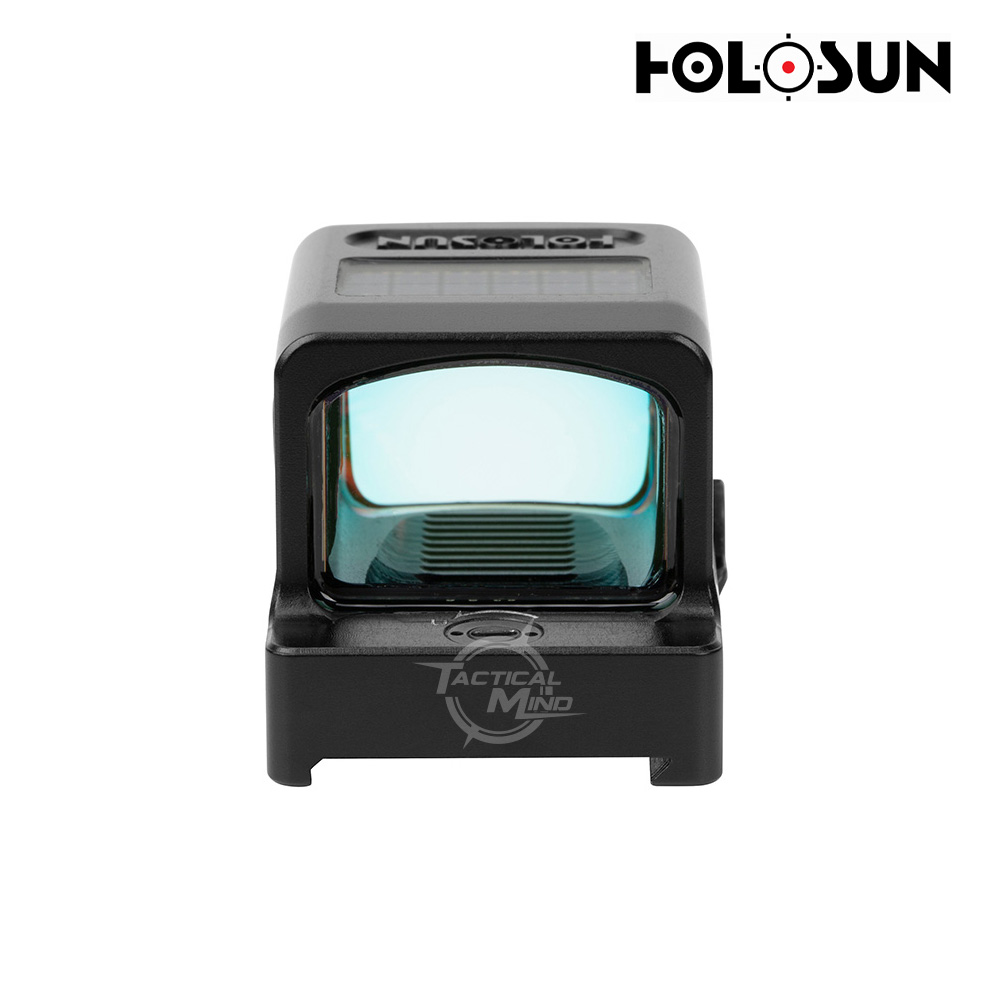

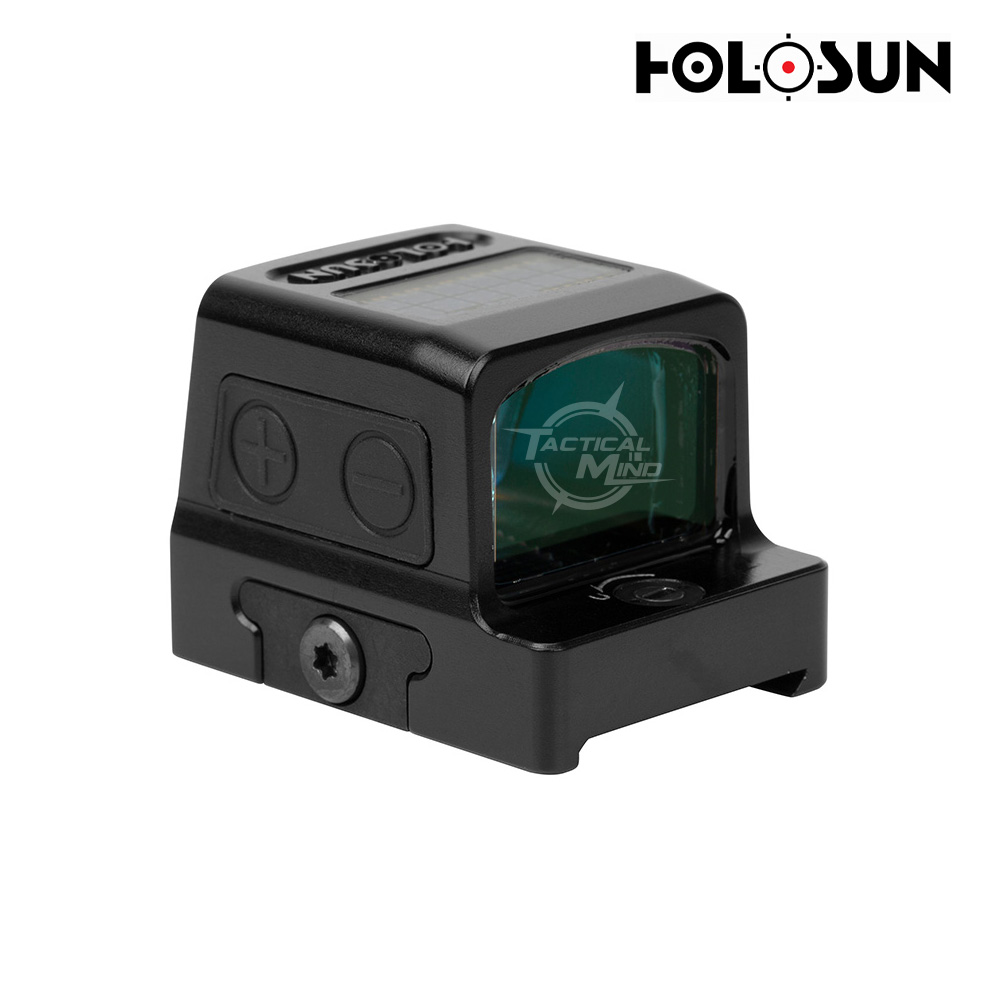

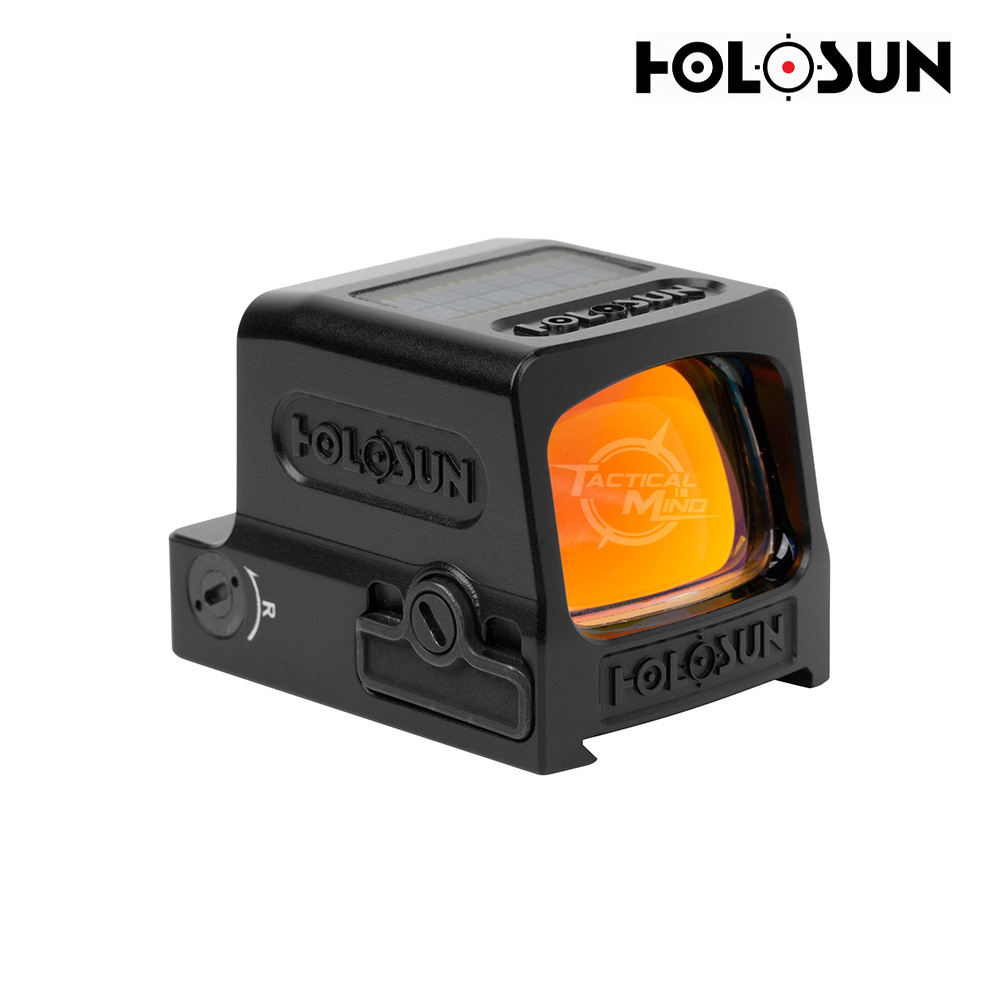

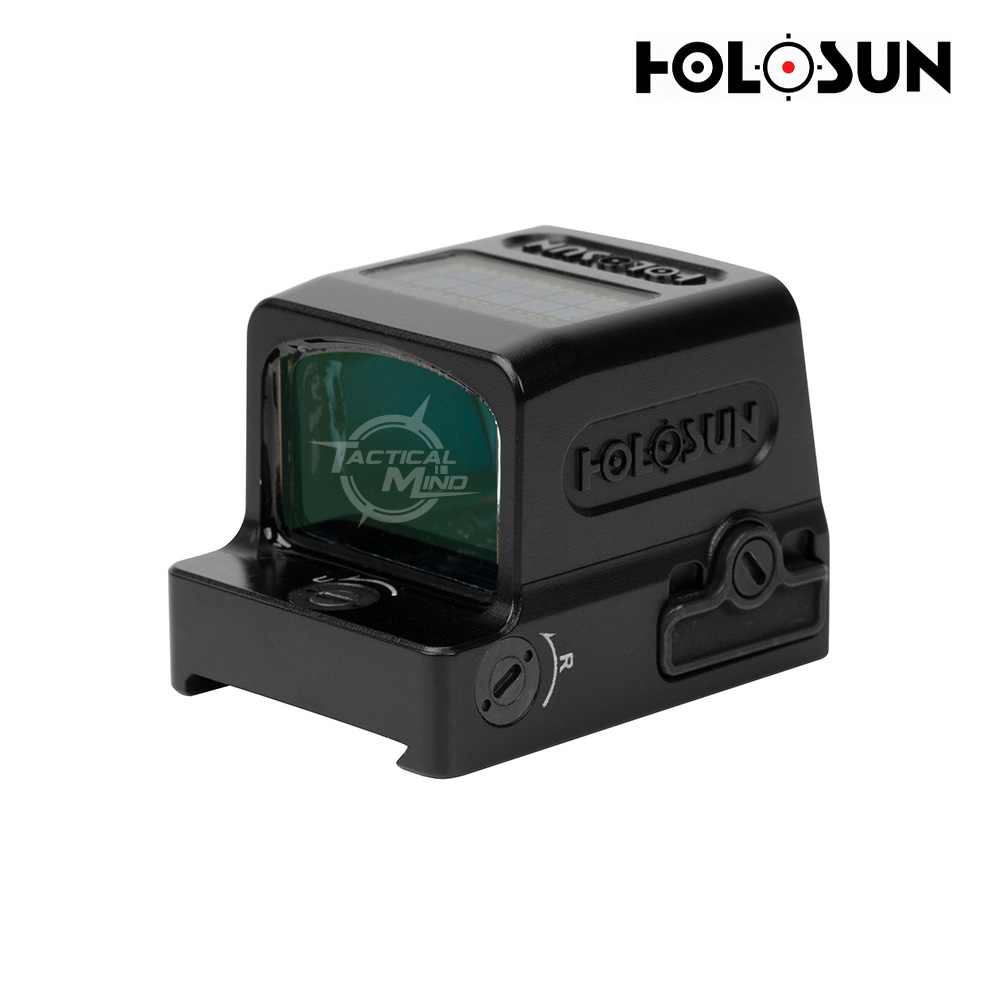

The HE509T-GR X2 is an enclosed reflex optical sight designed for pistol applications.

Features include a Titanium housing, Holosun’s Super Green LED with up to 50k hours battery life, Multi-Reticle System, Solar Failsafe, and Shake Awake.

The X2 version adds improved glass clarity, Lock Mode, and a full Multi-Reticle System providing 32MOA circle with 2MOA dot, dot only, or circle only reticle options.

The included 509T RMR adapter plate is not compatible with ZEV or Shadow Systems style RMR interfaces.



– OVERVIEW –

In the Box

•  RMR Adapter
•  T10 L Key
•  User Manual
•  CR1632 Battery
•  Lens Cloth

– TECH & FEATURES –

Solar Failsafe™

Shake Awake™

Multiple Reticle System

Super LED

Multilayer Reflective Glass

Titanium Housing

• MRS: Circle Dot; Dot Only; Circle Only
• Up to 50,000 Hours Battery Life (Setting 6)
• 12 Brightness Setting: 10 DL & 2 NV Compatible
• Enclosed Design & Titanium Housing
• Convenient Tray Battery Compartment
• Parallax-free & Unlimited Eye Relief

– SPECIFICATION –



OPTICAL DATA

• Reticle2 MOA Dot & 32 MOA Circle
• Light Wavelength540nm
• Reticle ColorGreen
• Parallax FreeYes
• Unlimited Eye ReliefYes
• Magnification1x
• Multi-CoatingsYes

ELECTRONIC DATA

• Power SourceSolar & Battery
• Battery TypeCR1632
• Battery Life (Hours)50000
• Brightness Setting10 DL&2 NV

MECHANICAL DATA

• Housing MaterialTitanium
• Surface FinishTitanium
• Adjustment per Click1 MOA
• W&E Travel Range±30 MOA

PHYSICAL DATA

• Window Size0.66×0.9

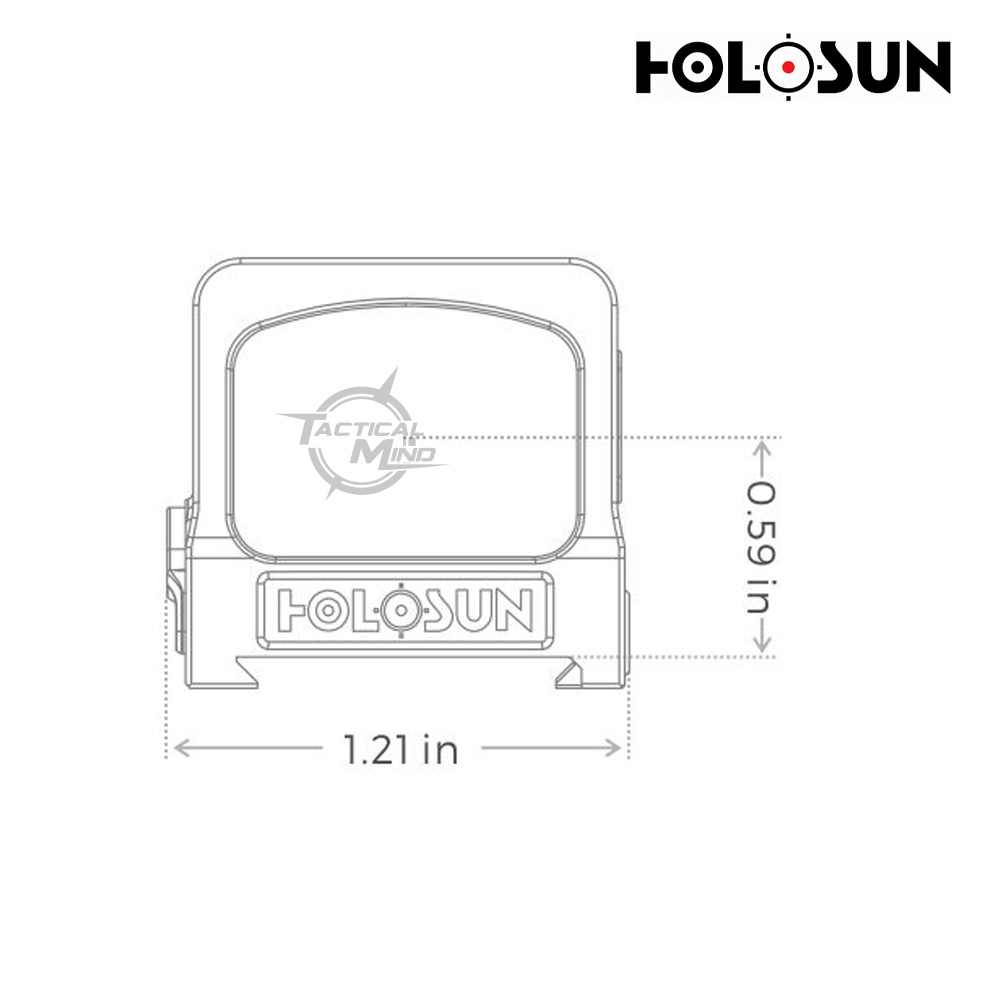

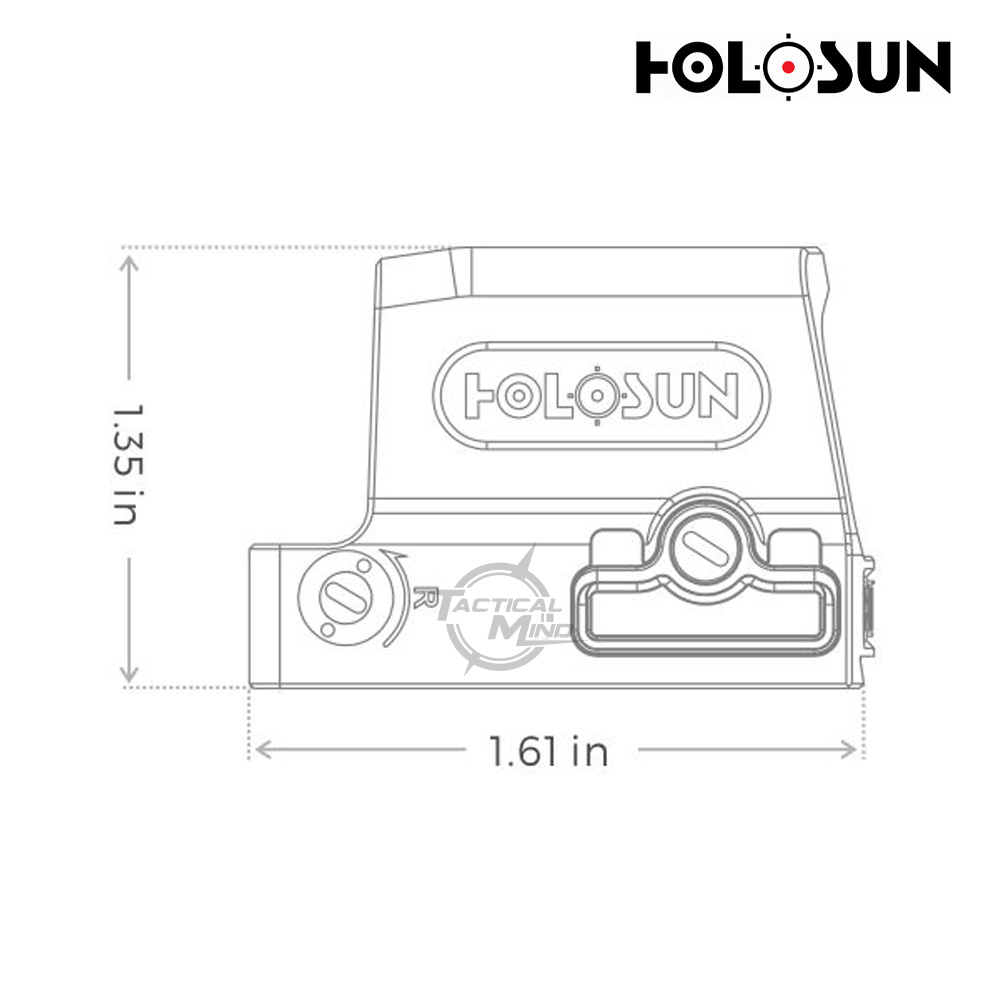

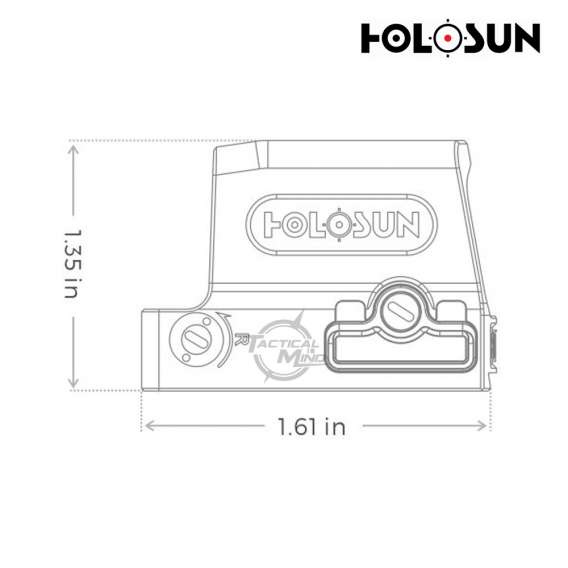

• Dimension (in)1.6×1.16×1.13
• Weight (oz)1.72

ENVIRONMENT DATA

• Storage Temperature-40℃~70℃
• Working Temperature-30℃~60℃
• SubmersionIP67
• Vibration5000G
