Description

HS506

– OVERVIEW –

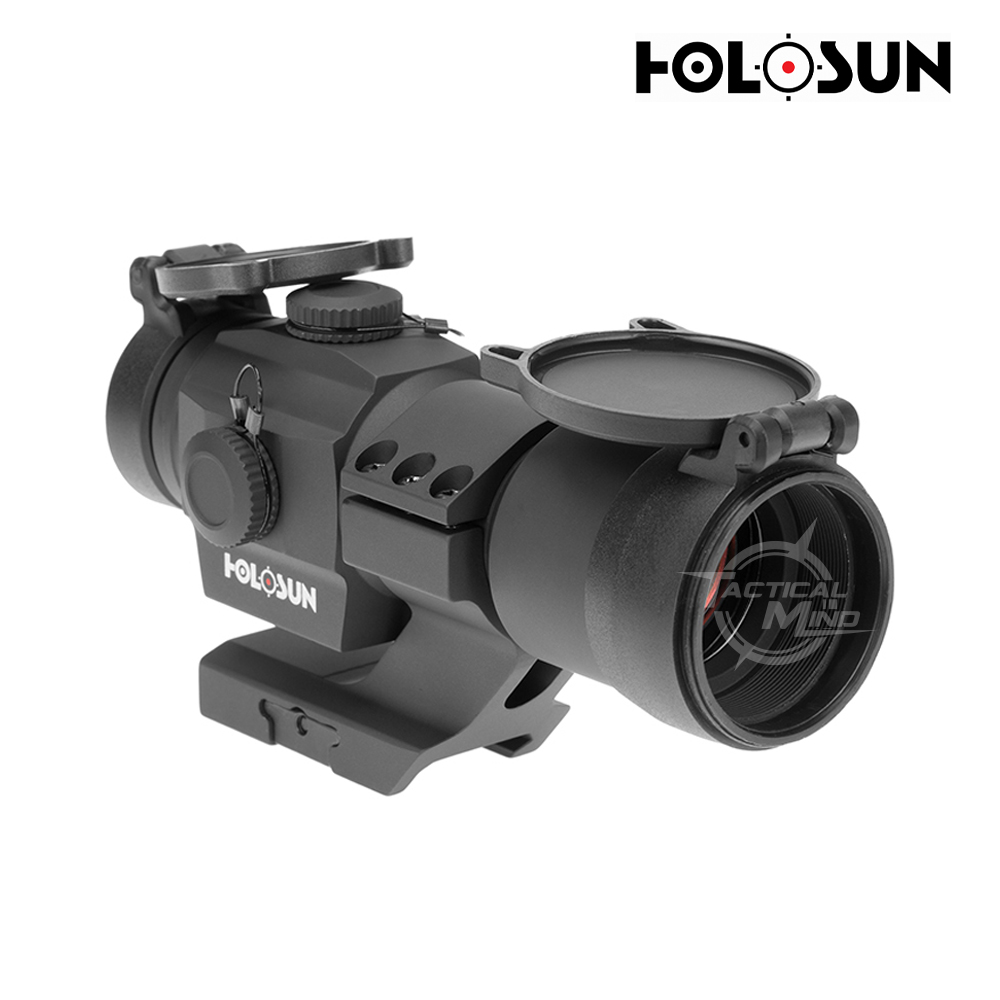

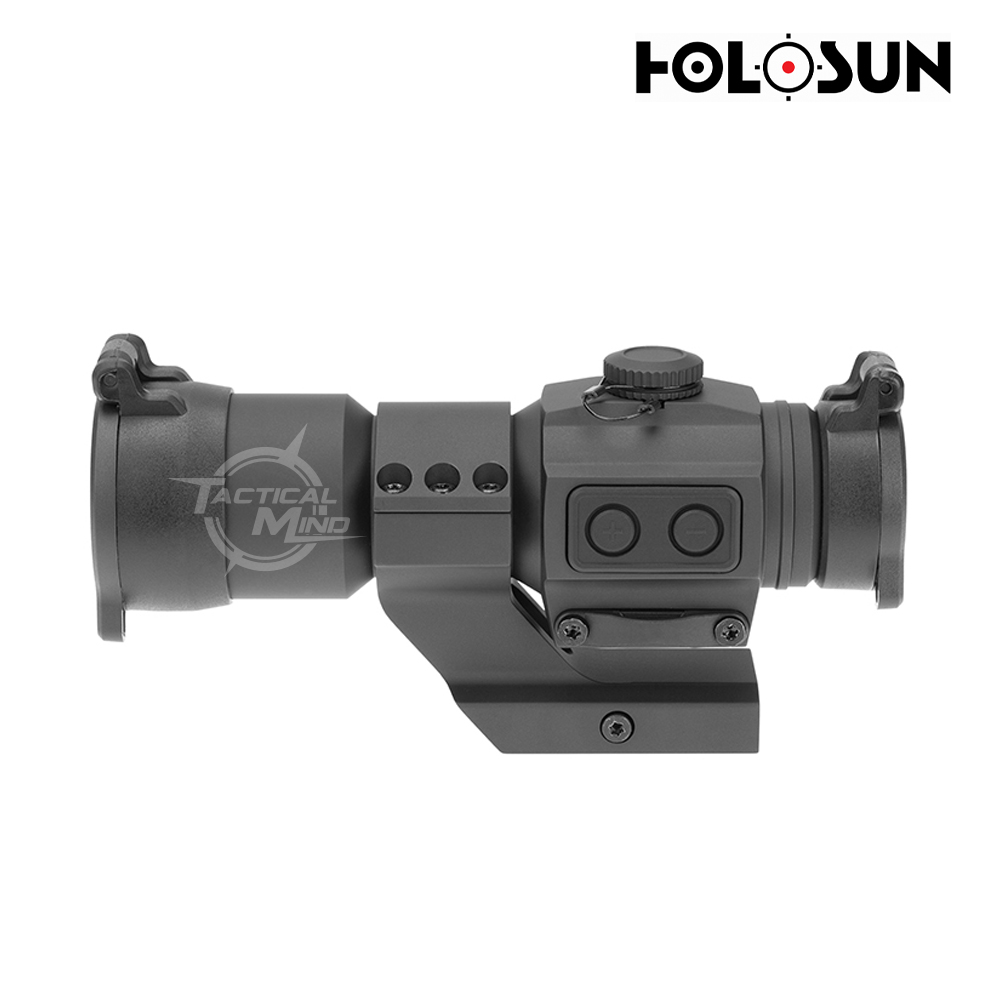

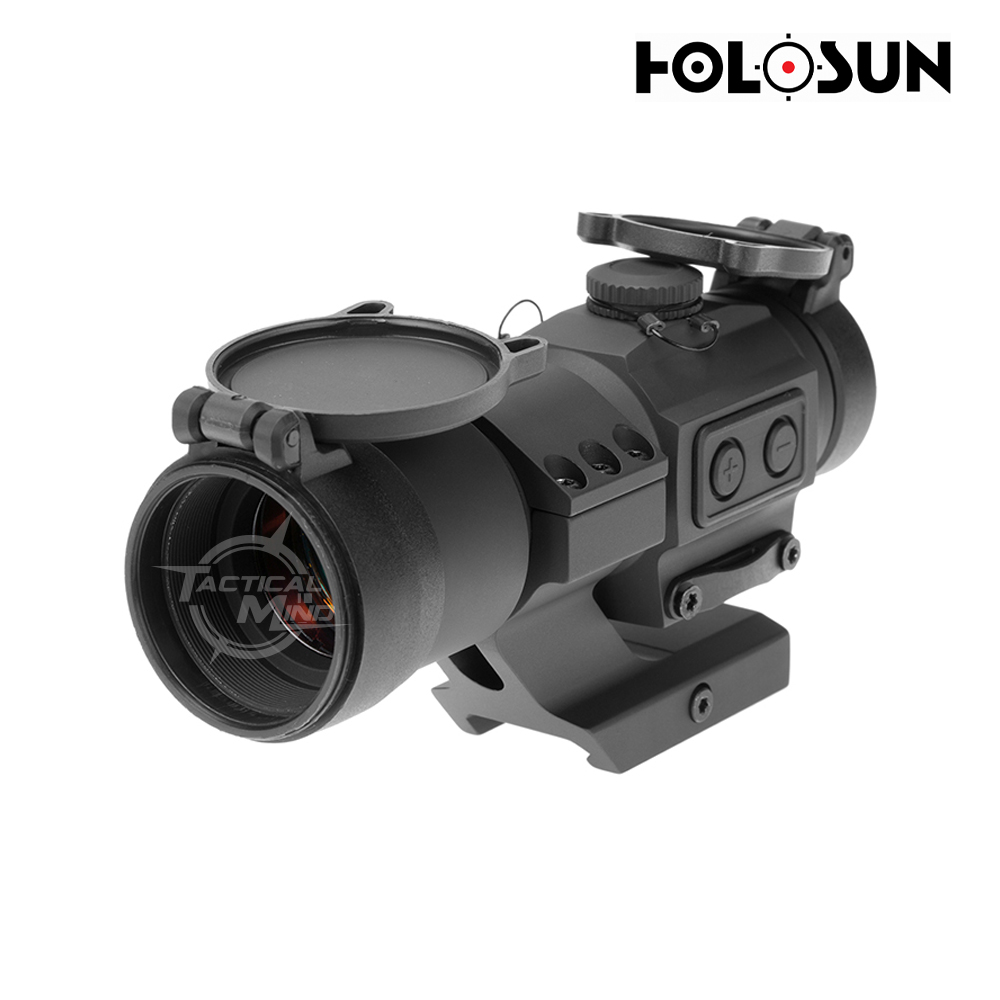

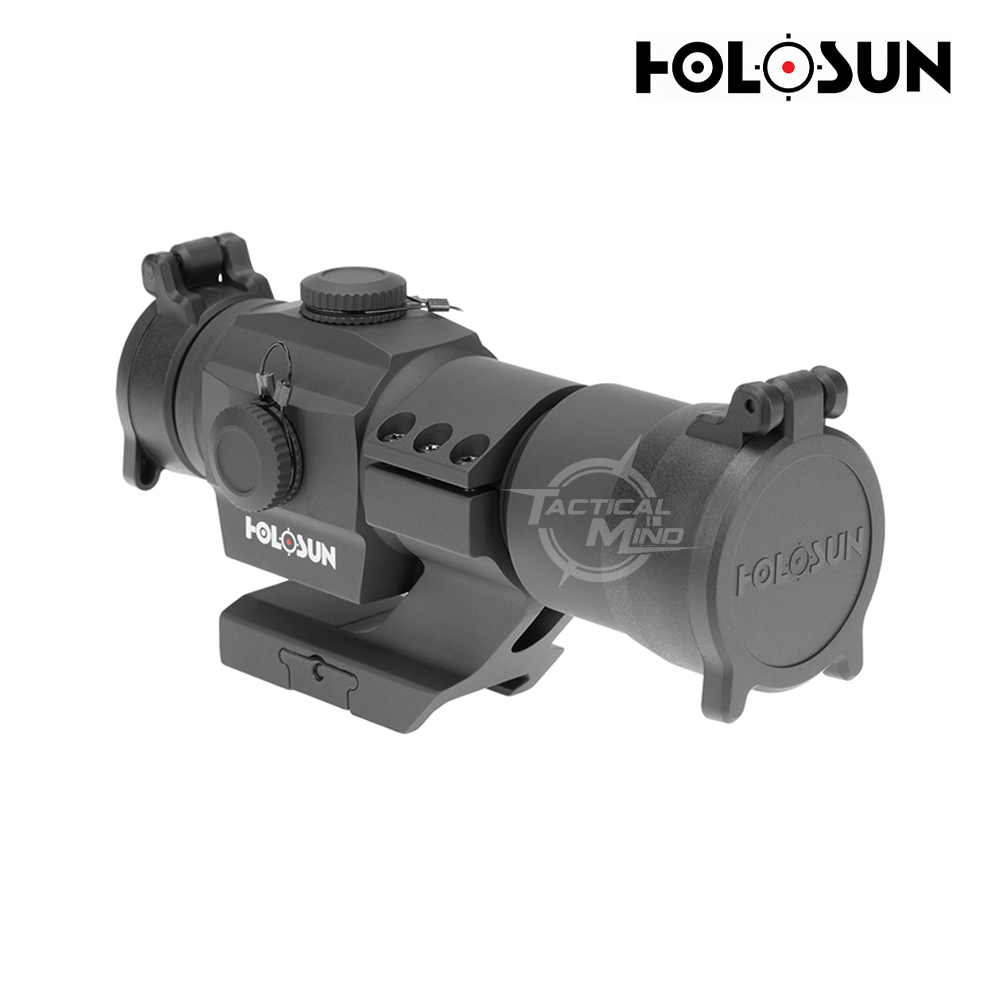

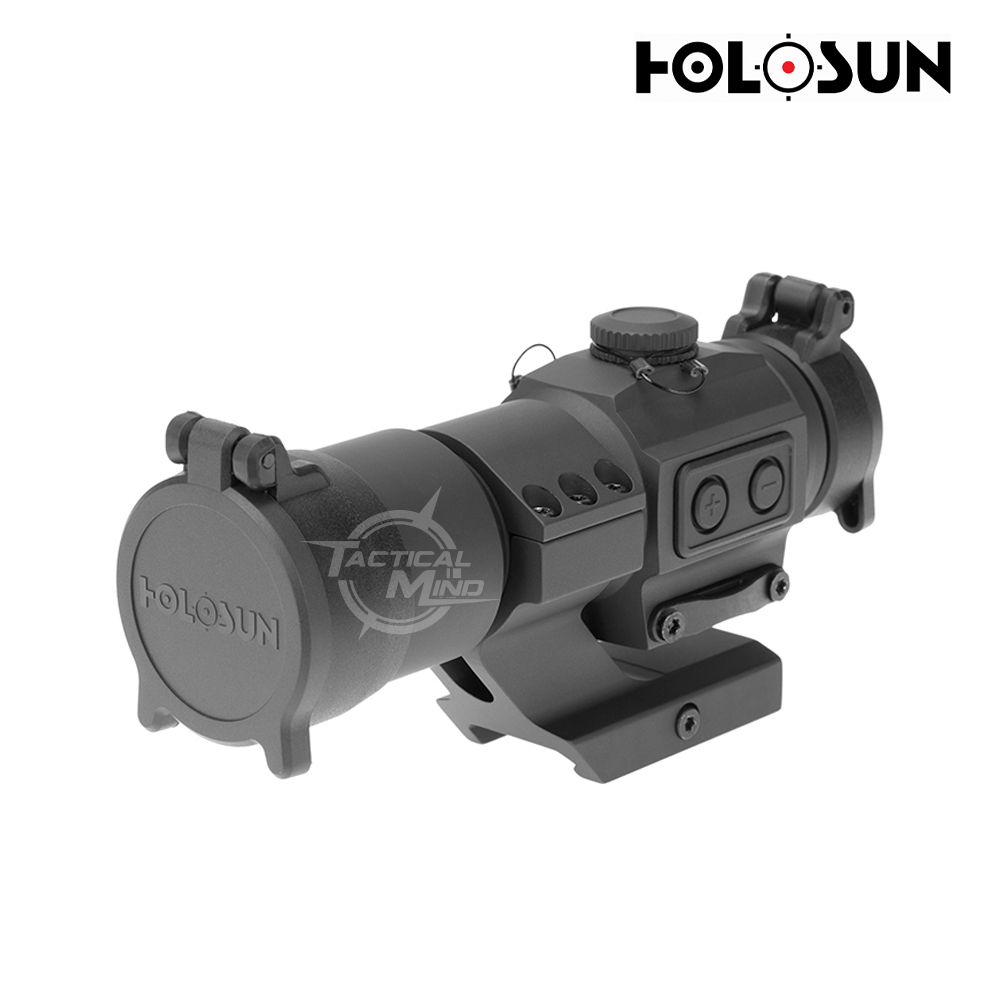

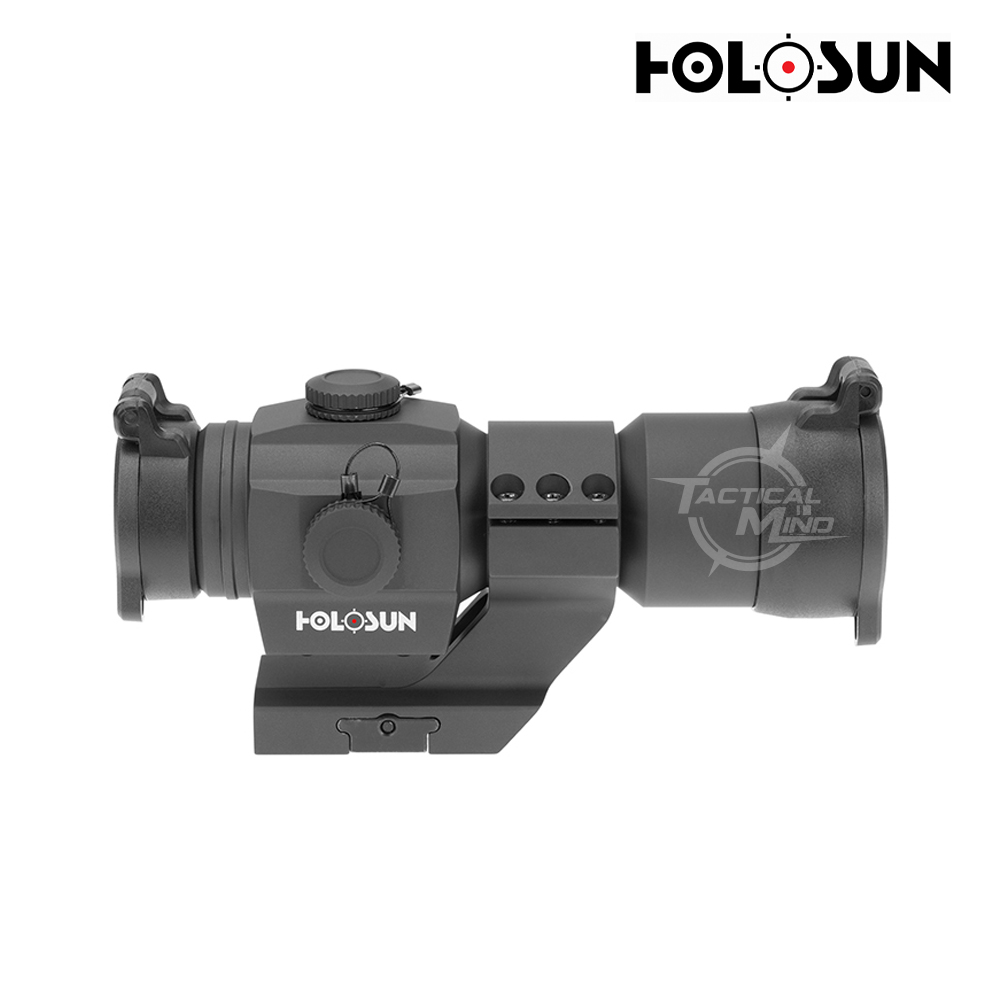

The HS506 is a 30mm optical sight designed for rifle and carbine applications. Features include Shake Awake, 12 brightness settings, Holosun’s Super LED with up to 50k hour battery life, Multi-Reticle System, Cantilever Mount, and Flip-up Lens Caps.



In the Box

•  T10 L Key
•  Flip-backs
•  User Manual
•  CR2032 Battery
•  Length Cloth

– TECH & FEATURES –



Shake Awake™

Multiple Reticle System

Multilayer Reflective Glass

• MRS:2 MOA Dot; 2 MOA Dot & 65 MOA Circle
• Up to 50,000 Hours Battery Life (Setting 6)
• 12 Brightness Setting: 10 DL & 2 NV Compatible
• Parallax-free & Unlimited Eye Relief
• 1.535” Torx Mount

– SPECIFICATION –



OPTICAL DATA

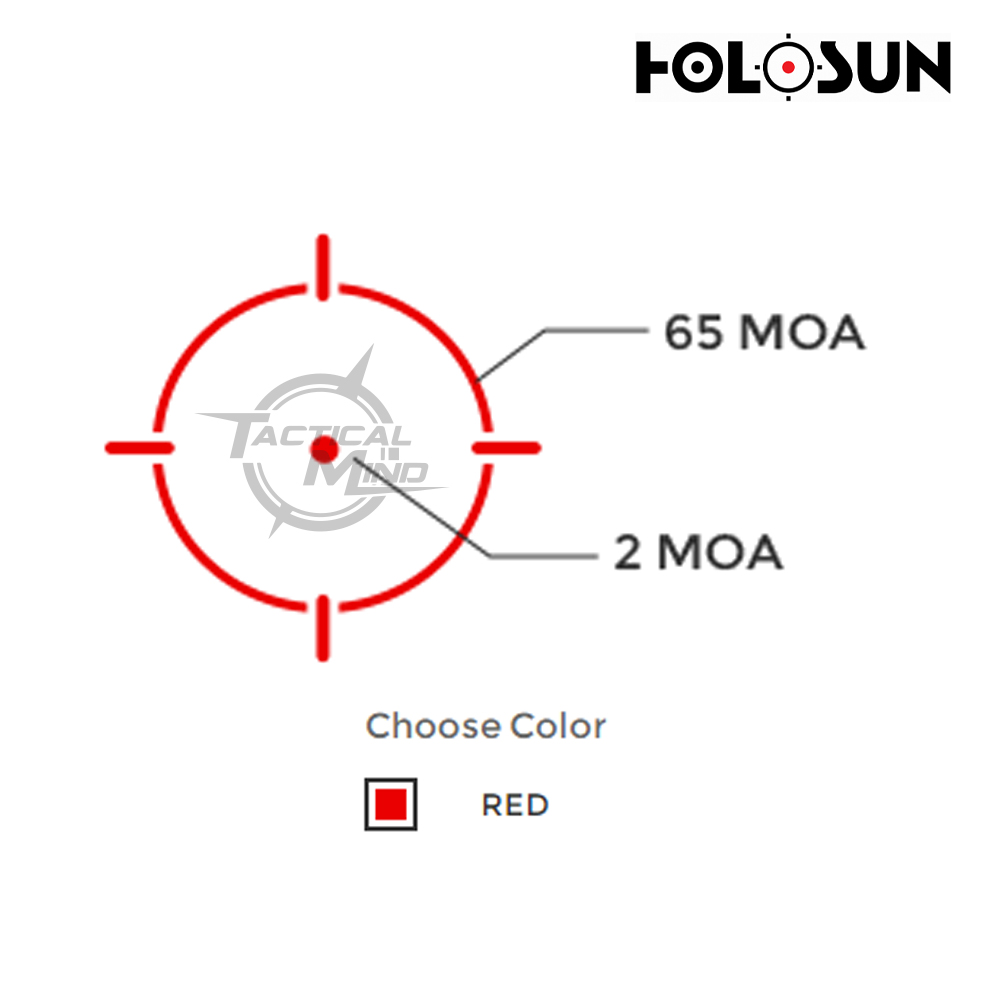

• Reticle2 MOA Dot & 65 MOA Circle
• Light Wavelength650nm
• Reticle ColorRed
• Parallax FreeYes
• Unlimited Eye ReliefYes
• Magnification1x
• Multi-CoatingsYes

LECTRONIC DATA

• Power SourceBattery
• Battery TypeCR2032
• Battery Life (Hours)50000
• Brightness Setting10 DL&2 NV

MECHANICAL DATA

• Housing Material6061 T6 Aluminum
• Surface FinishMAO
• Adjustment per Click0.5 MOA
• W&E Travel Range±50 MOA

PHYSICAL DATA

• Window Size30mm Diameter

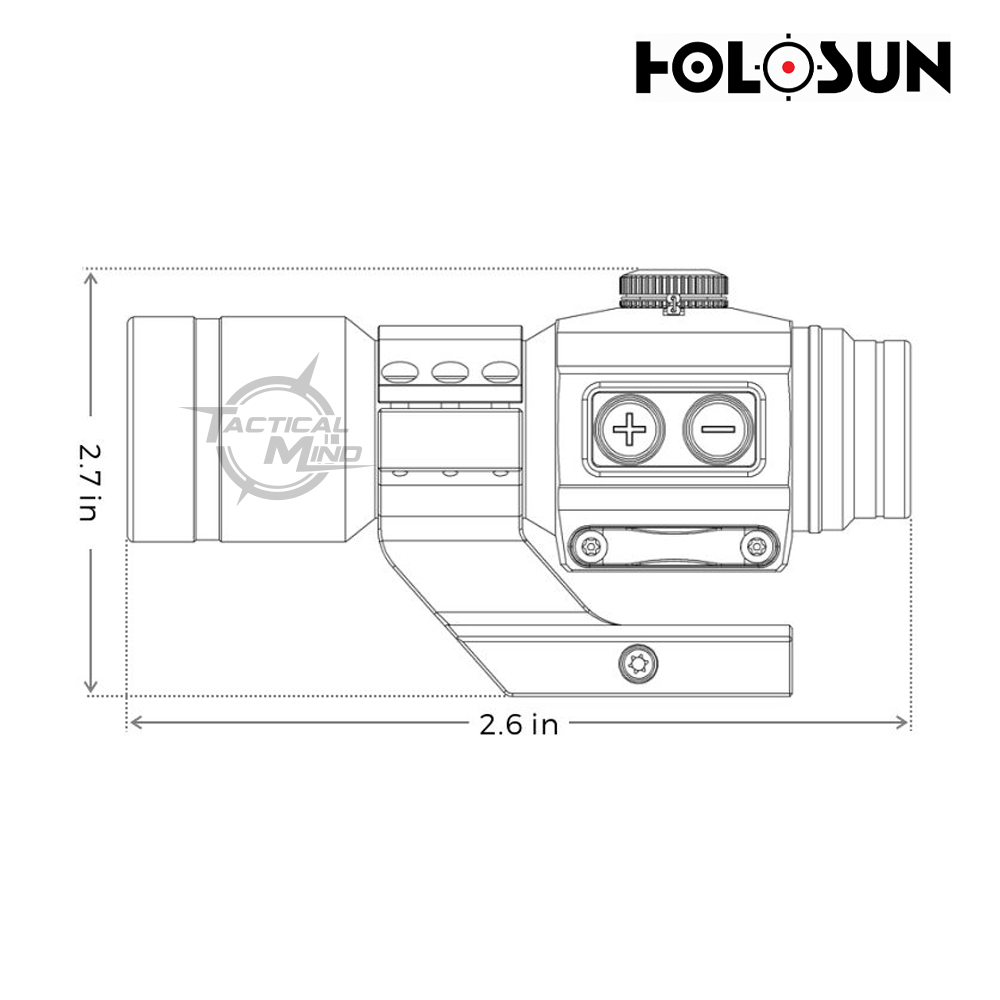

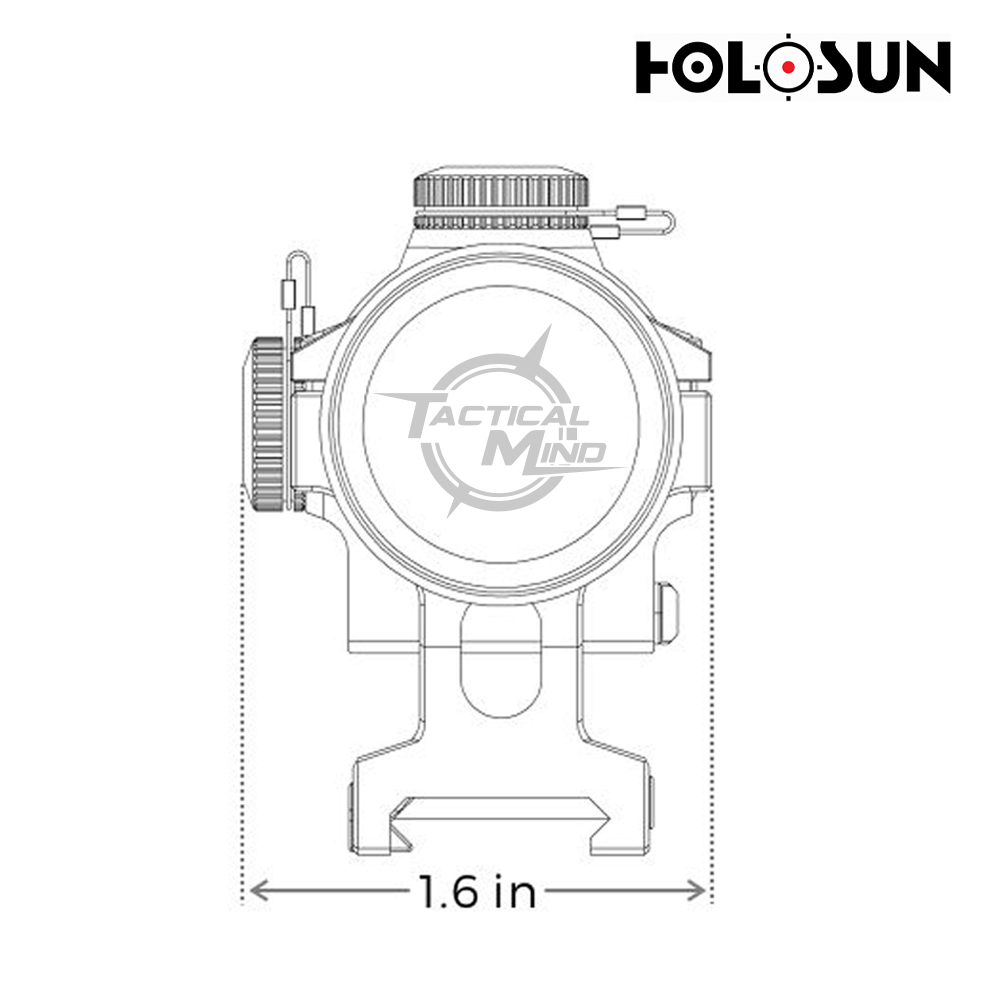

• Dimension (in)5.2×1.9×2
• Weight (oz)6.17

ENVIRONMENT DATA

• Storage Temperature-40℃~70℃
• Working Temperature-30℃~60℃
• SubmersionIP67
• Vibration1000G
