Description

LE117 (G, IR, R)

– OVERVIEW –

The LE117-RD is a Titanium bodied class IIIA visible red laser aiming device. Features include a quick release picatinny rail mount, remote pressure switch, and IPX8 water resistance.



In the Box

•  QD Release Mount
•  Remote Cable Switch
•  T10 L Key
•  User Manual
•  CR123 Battery

– TECH & FEATURES –

• Collimated Red Laser Pointer
• High/Low Brightness Setting
• Complete Titanium Housing
• Remote Cable Switch
• Quick Release Mount
• IP67 Waterproof

– SPECIFICATION –

ELECTRONIC DATA

• Power SourceBattery
• Battery TypeCR123A
• Battery Life (Hours)Up to modes
• Brightness SettingUp to modes

MECHANICAL DATA

• Housing MaterialTitanium
• Surface FinishTitanium
• Adjustment per Click0.5 MOA
• W&E Travel Range±60 MOA

PHYSICAL DATA

• Window SizeN/A

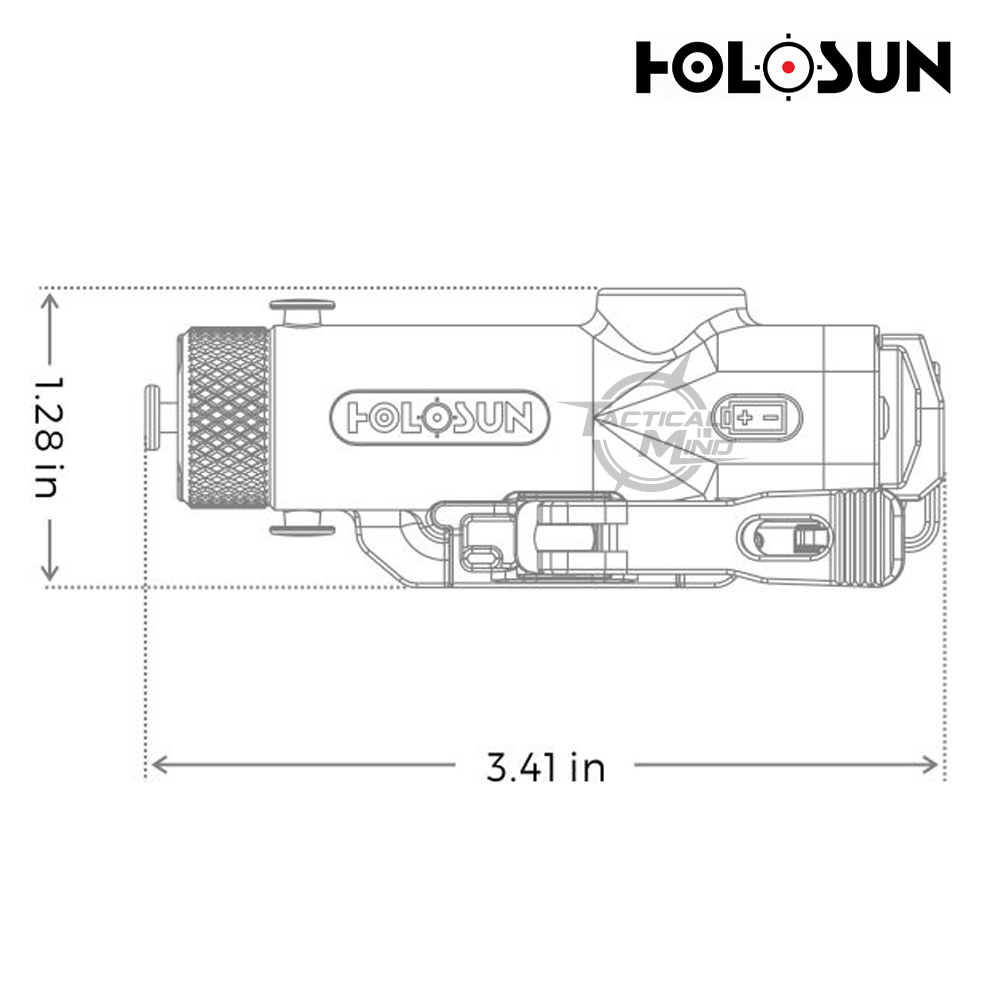

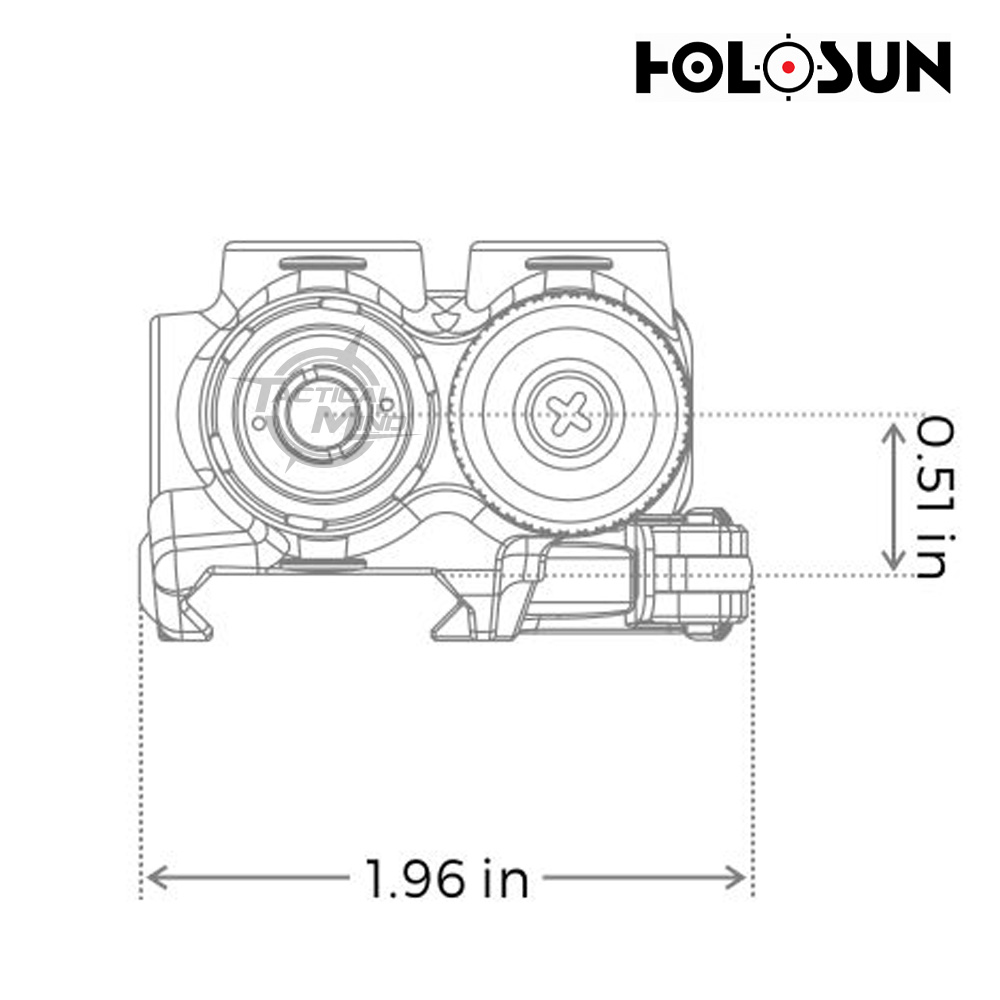

• Dimension (in)3.43×1.77×1.34
• Weight (oz)6.7

ENVIRONMENT DATA

• Storage Temperature-40℃~65℃
• Working Temperature-40℃~51℃
• SubmersionIPX8
• Vibration1000G

LASER DATA

• Laser & Illuminator TypeSingle Laser
• White LED OutputN/A
• IR Illuminator ClassN/A
• IR Illuminator Output0.7mw
• IR Pointer ClassN/A
• IR Pointer Output0.1mw(low)/0.7mw(high)
• Visible Laser ClassIIIA
• Visible Laser Output1mw(low)/5mw(high)
