Description

LS321 (R, G)

– OVERVIEW –

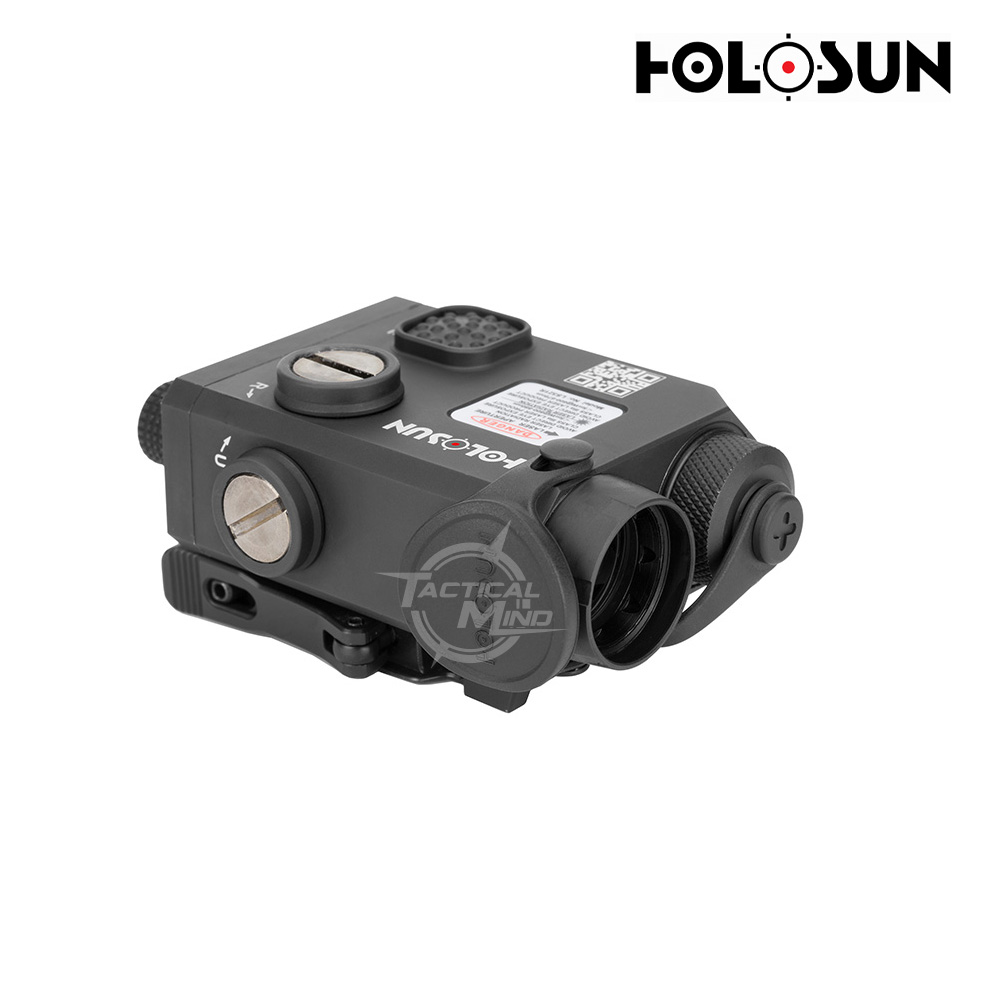

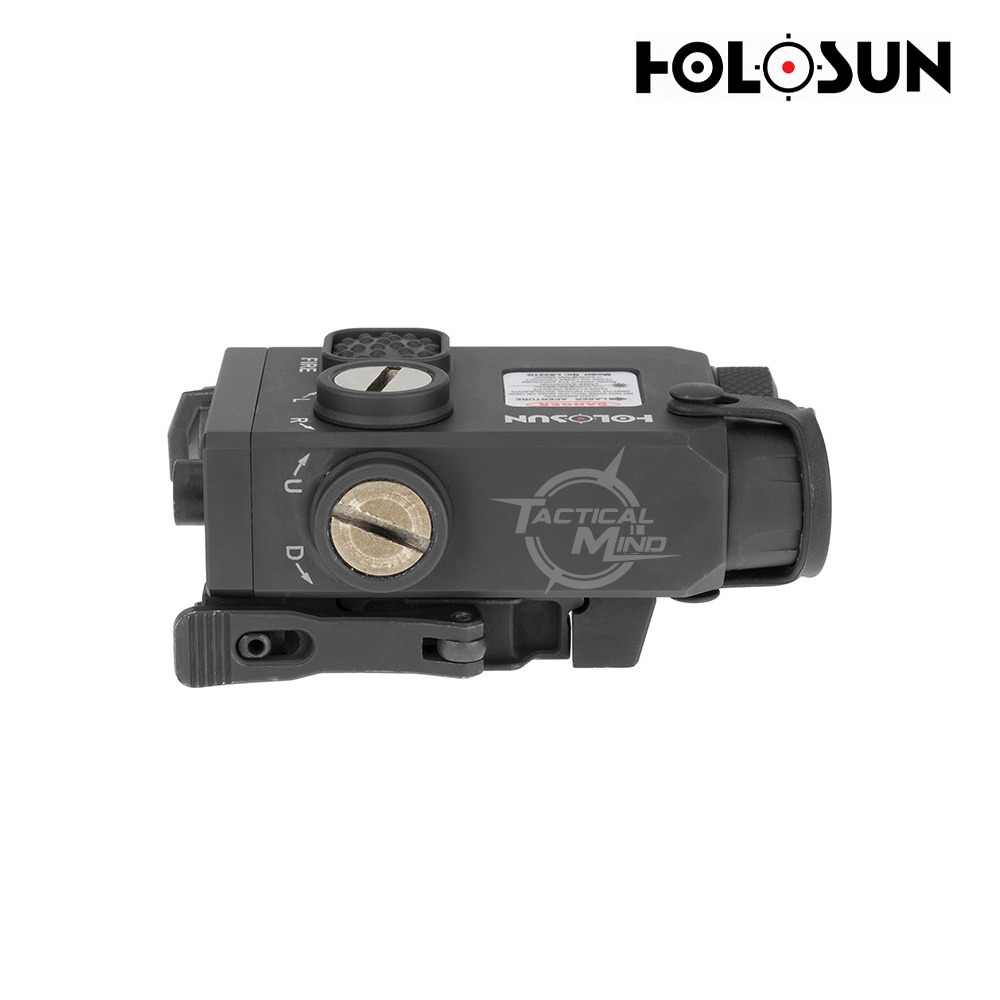

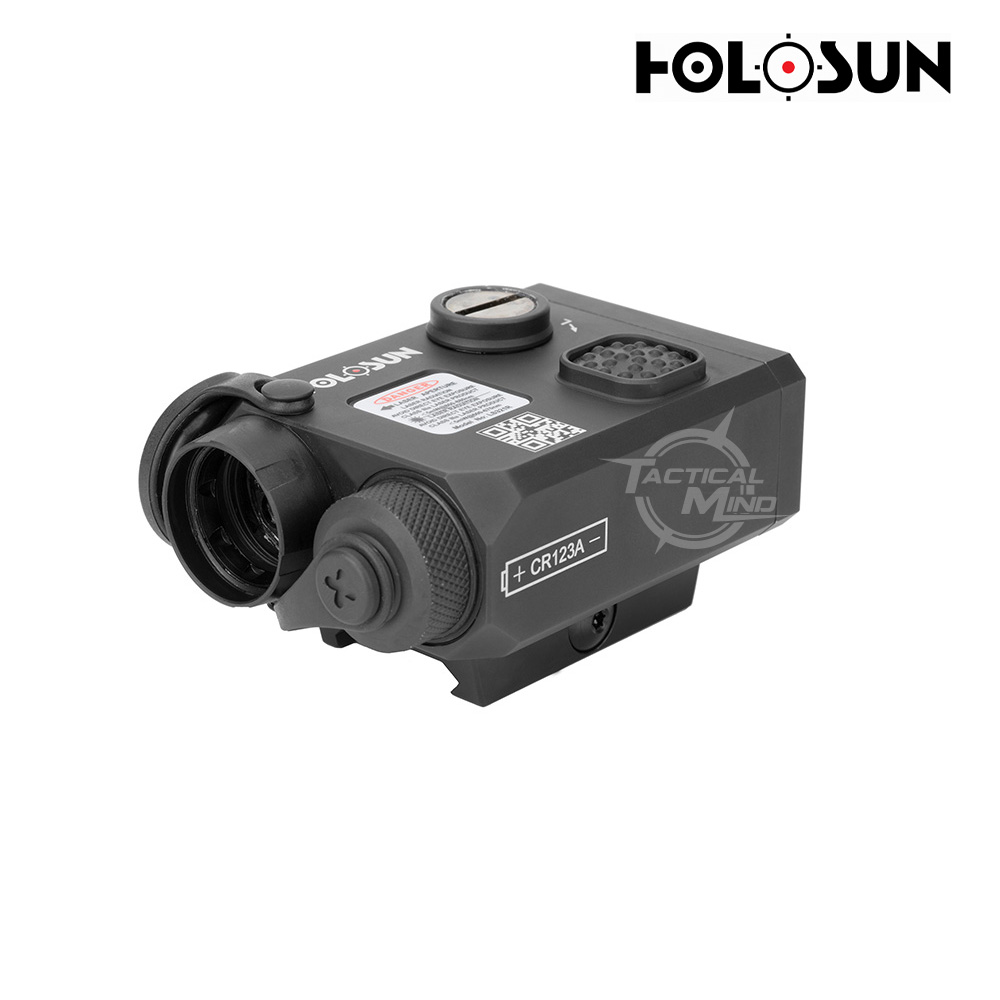

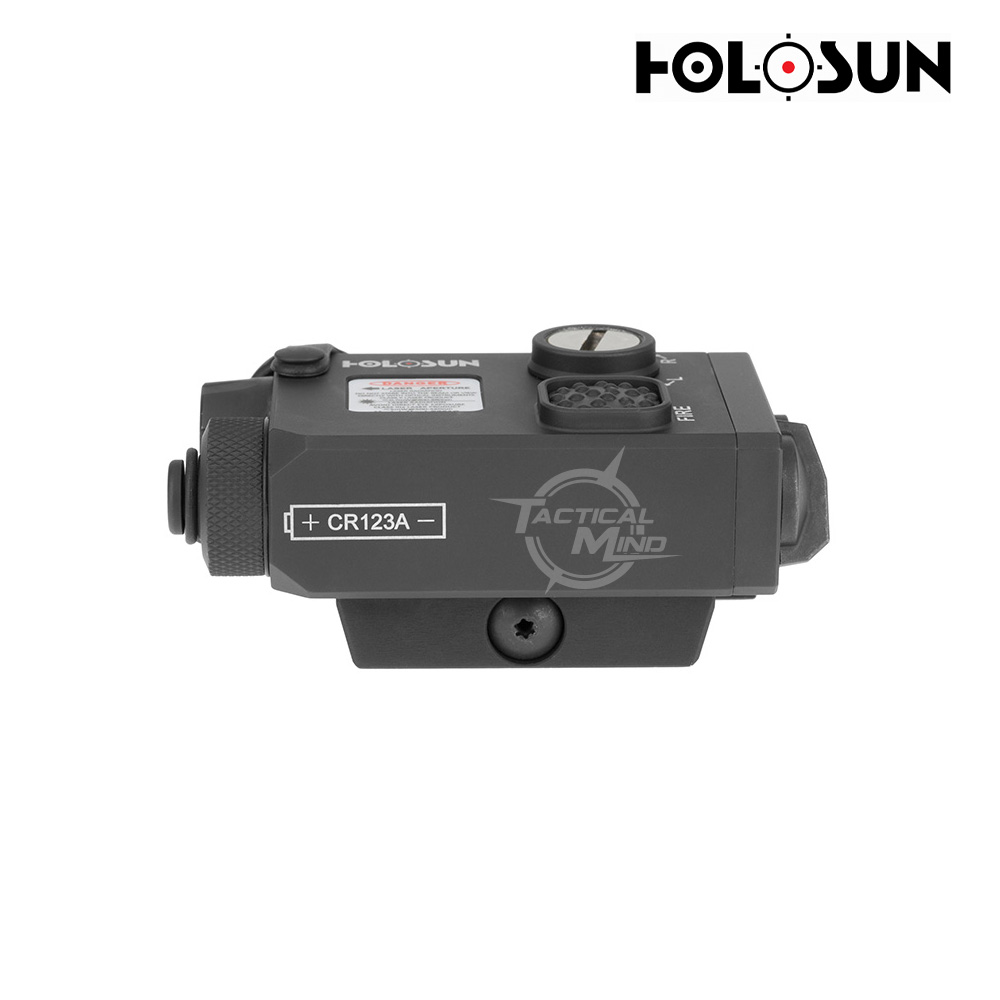

The LS321R is a 7075 Aluminum bodied multi- laser aiming device. Includes class IIIA visible red laser, class 2M IR laser, and IR Illuminator coaxially mounted for easy zeroing. Also features an IR Illuminator focus adjustment, quick release picatinny rail mount, remote pressure switch, and IP67 water resistance.



In the Box

•  QD Release Mount
•  Remote Cable Switch
•  T10 L Key
•  User Manual
•  CR123A Battery

– TECH & FEATURES –

• Coaxial Dual Laser & IR Illuminator
• High/Low Brightness Setting
• Remote Cable Switch
• Quick Release Mount
• IP67 Waterproof

– SPECIFICATION –

ELECTRONIC DATA

• Power SourceBattery
• Battery TypeCR123A
• Battery Life (Hours)Up to modes
• Brightness SettingUp to modes

MECHANICAL DATA

• Housing Material7075 T6 Aluminum
• Surface FinishMAO
• Adjustment per Click0.5 MOA
• W&E Travel Range±50 MOA

PHYSICAL DATA

• Window SizeN/A

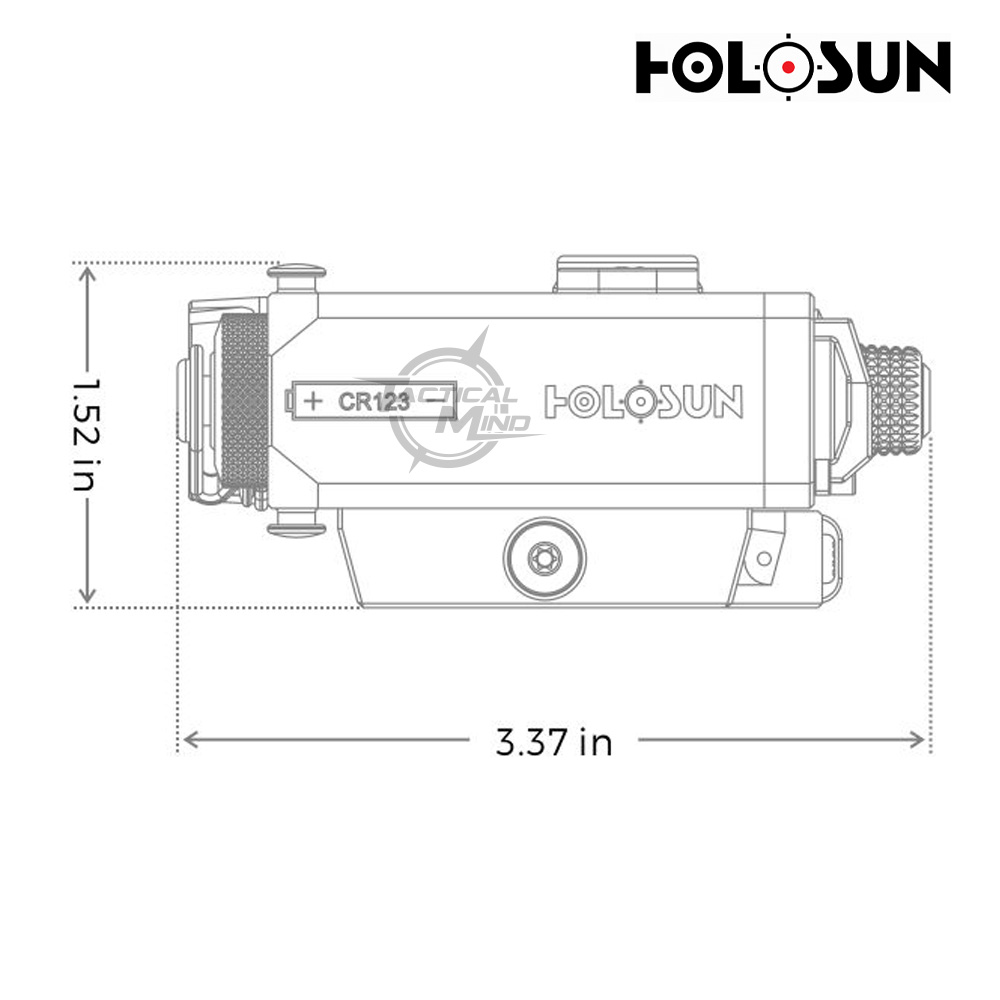

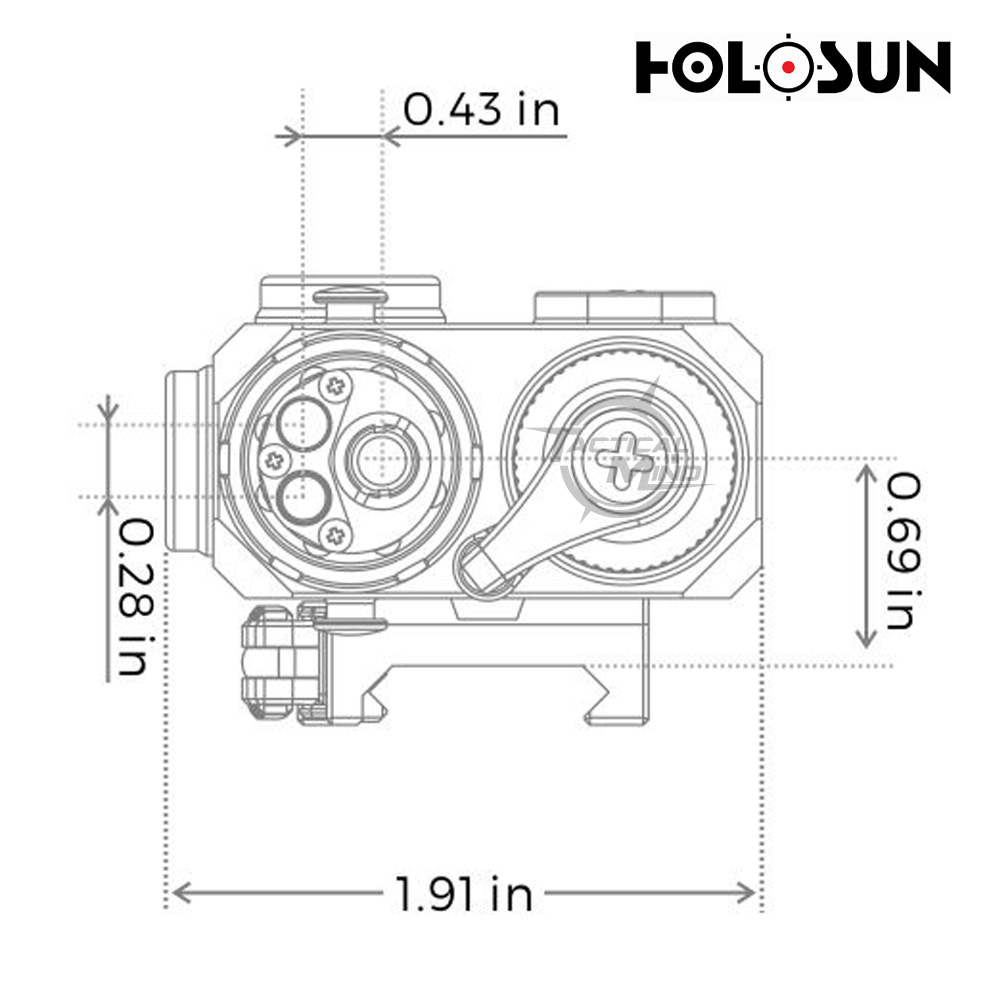

• Dimension (in)3.6×2.2×1.6
• Weight (oz)8.64

ENVIRONMENT DATA

• Storage Temperature-40℃~65℃
• Working Temperature-40℃~51℃
• SubmersionIP67
• Vibration1000G

LASER DATA

• Laser & Illuminator TypeDual Laser & IR Illuminator
• White LED OutputN/A
• IR Illuminator ClassN/A
• IR Illuminator Output0.7mw
• IR Pointer ClassN/A
• IR Pointer Output0.1mw(low)/0.7mw(high)
• Visible Laser ClassIIIA
• Visible Laser Output1mw(low)/5mw(high)
