Description

LS420

– OVERVIEW –

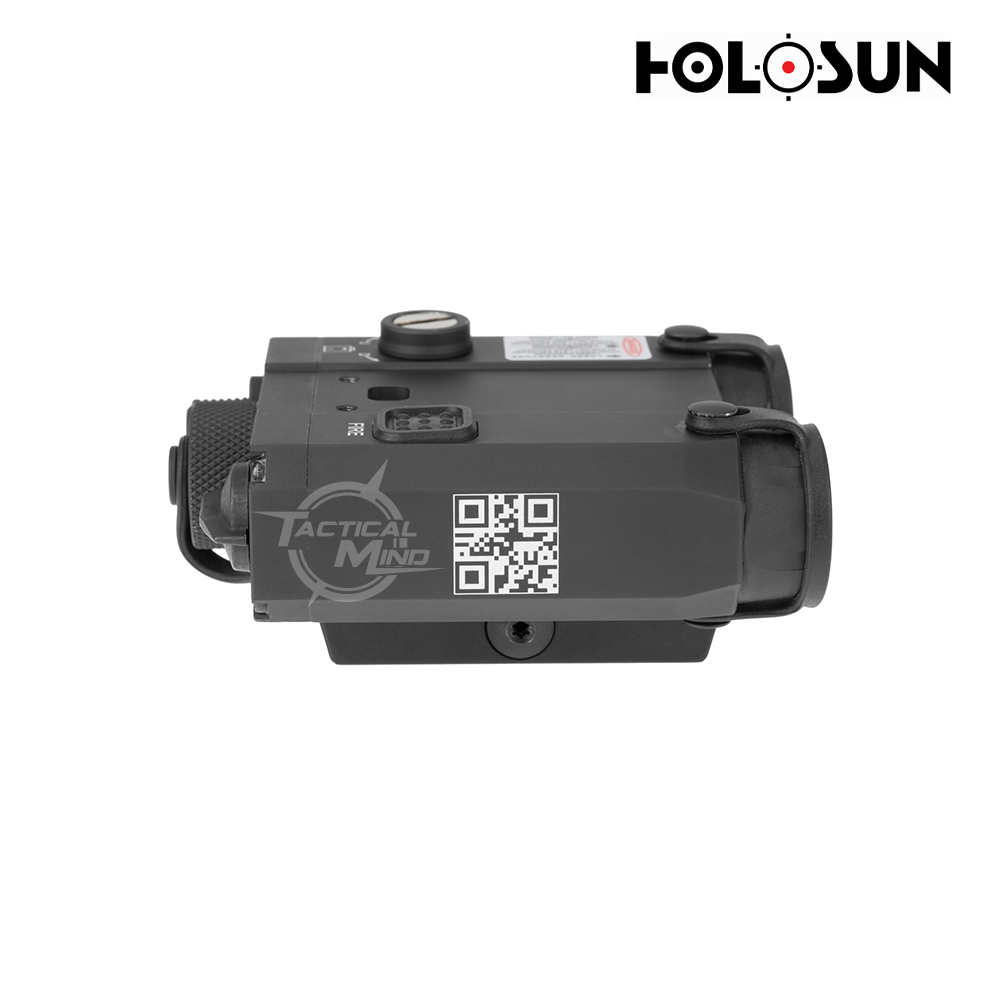

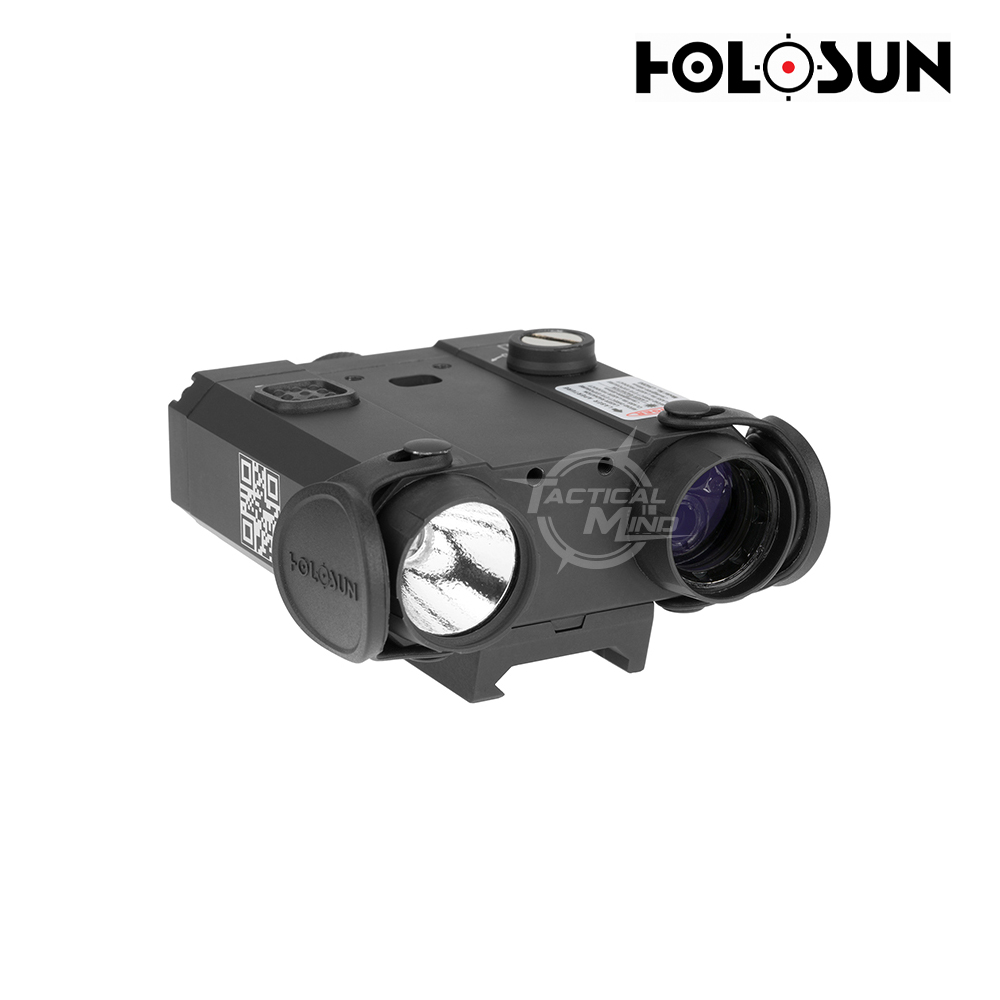

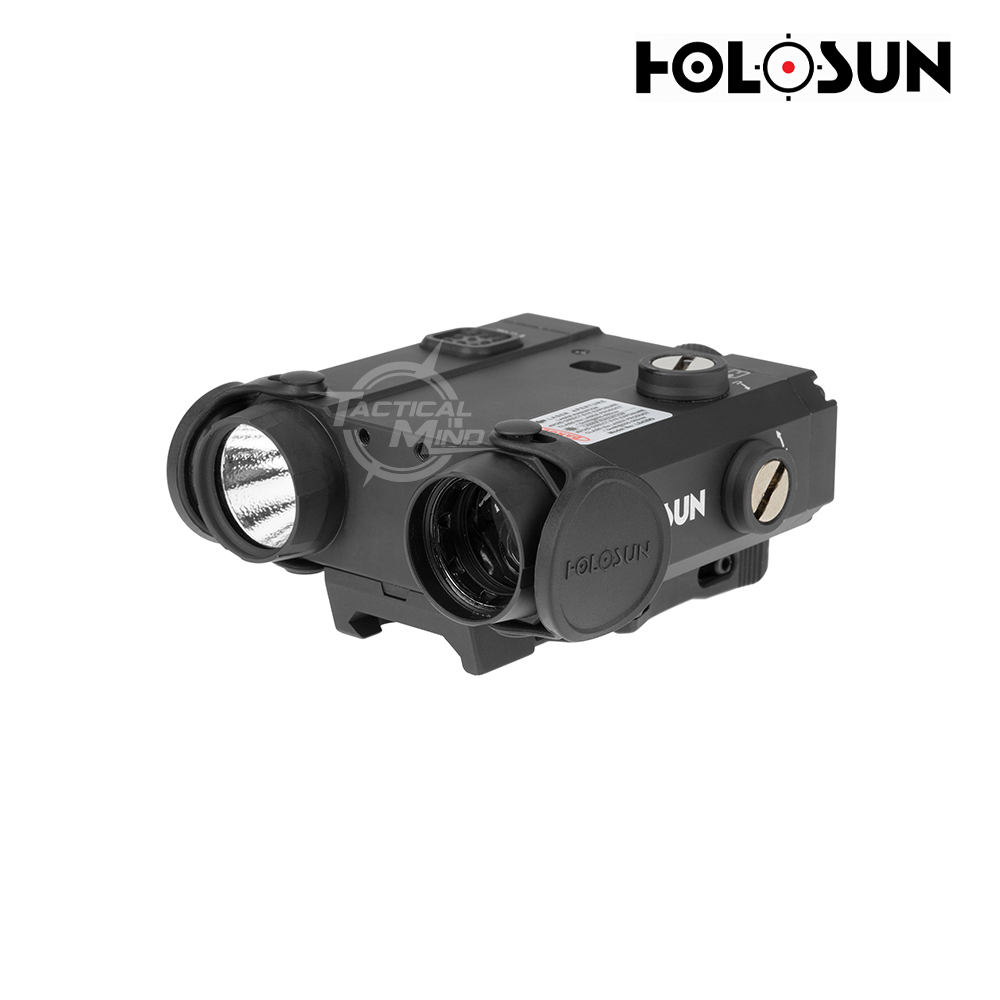

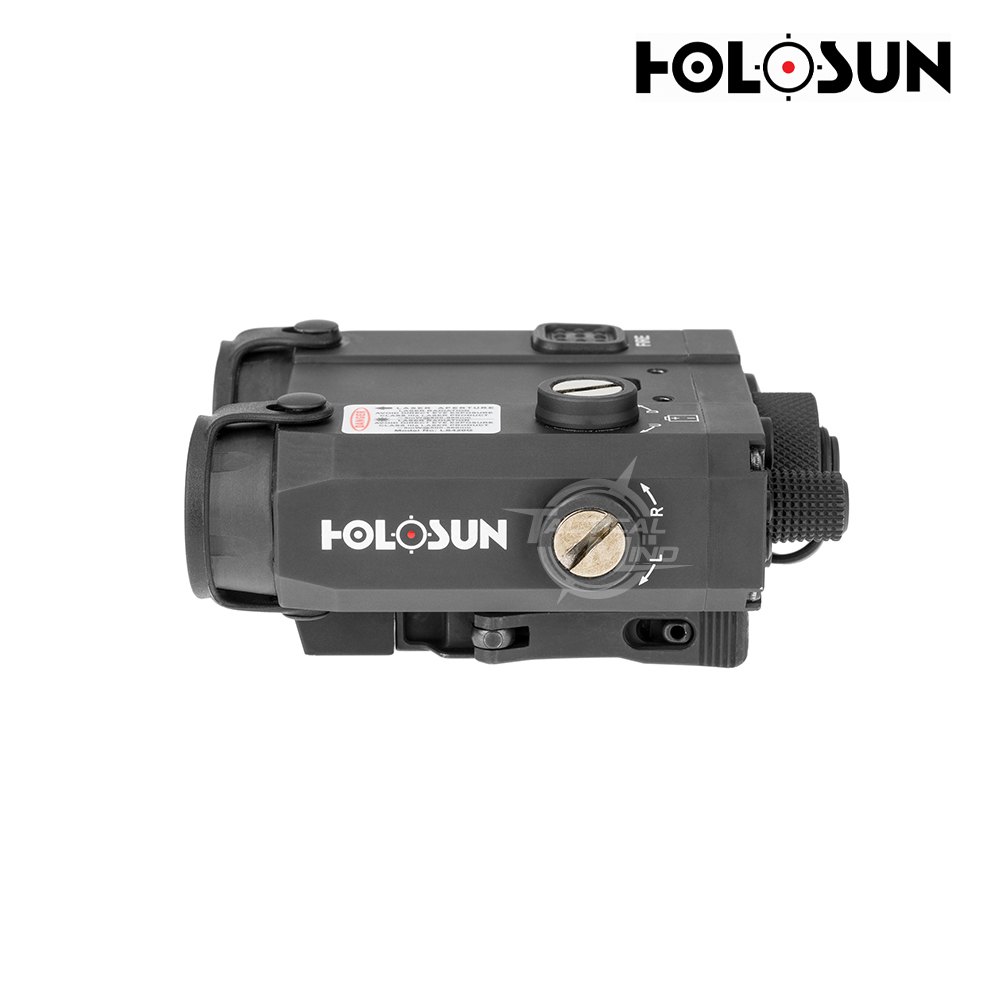

The LS420G is a 7075 Aluminum bodied multi- laser aiming device. Includes class IIIA visible green laser, class 2M IR laser, and IR Illuminator coaxially mounted for easy zeroing. Also features a 600 Lumen white light, IR Illuminator focus adjustment, quick release picatinny rail mount, remote pressure switch, IP67 water resistance, and is powered by two CR123 batteries for increased run-time.



In the Box

•  QD Release Mount
•  Remote Cable Switch
•  T10 L Key
•  User Manual
•  CR123A Battery

• Dual Lasers & Dual Illuminators
• High/Low Brightness Setting
• Remote Cable Switch
• Quick Release Mount
• IP67 Waterproof

– SPECIFICATION –



ELECTRONIC DATA

• Power SourceBattery
• Battery TypeCR123A
• Battery Life (Hours)Up to modes
• Brightness SettingUp to modes

MECHANICAL DATA

• Housing Material7075 T6 Aluminum
• Surface FinishMAO
• Adjustment per Click0.5 MOA
• W&E Travel Range±50 MOA

PHYSICAL DATA

• Window SizeN/A

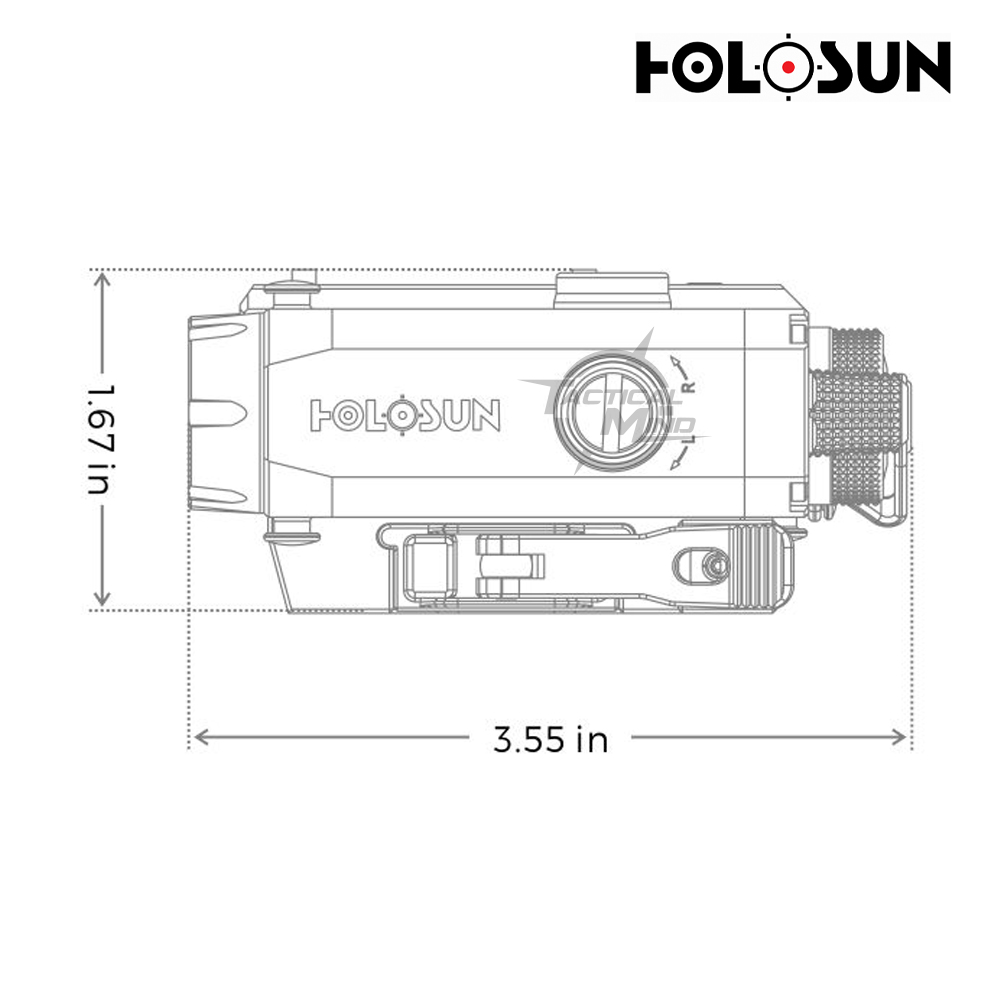

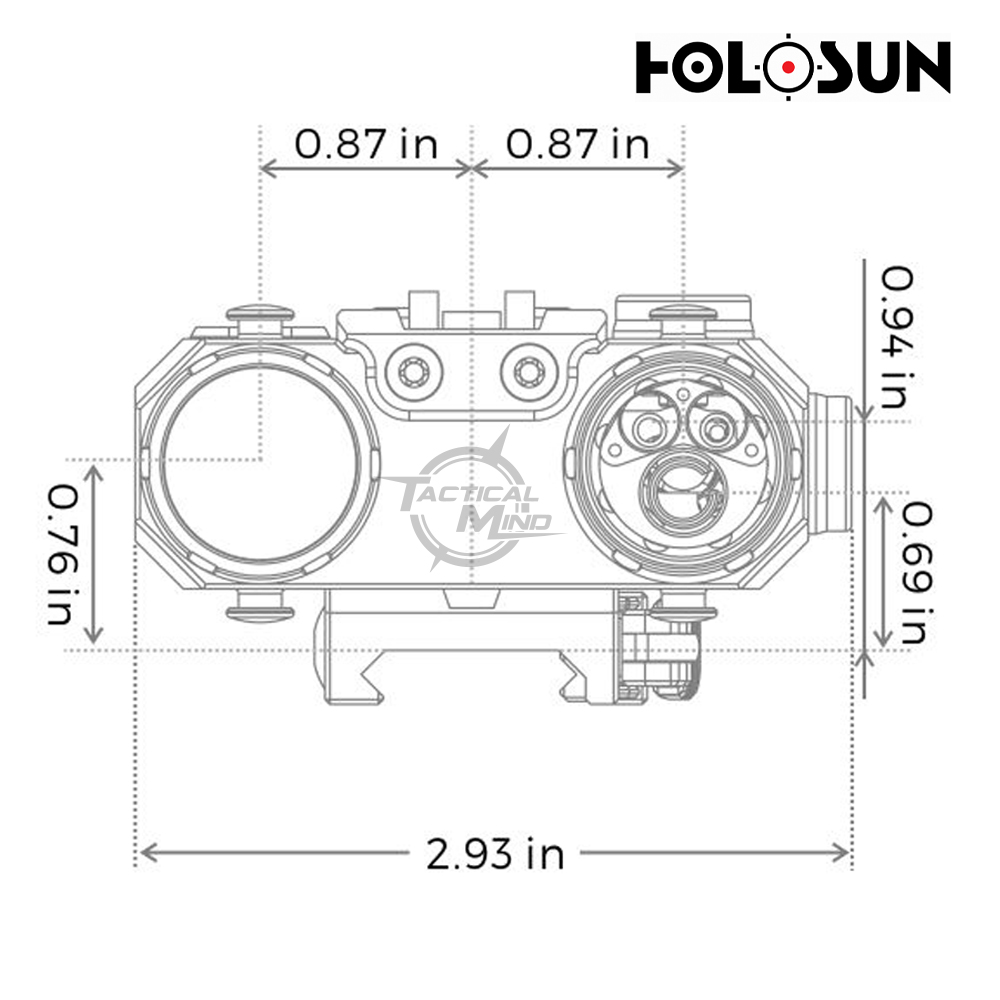

• Dimension (in)3.6×2.9×1.6
• Weight (oz)10.6

ENVIRONMENT DATA

• Storage Temperature-40℃~65℃
• Working Temperature-40℃~51℃
• SubmersionIP67
• Vibration1000G

LASER DATA

• Laser & Illuminator TypeDual Laser & Dual Illuminator
• White LED Output600 Lumens
• IR Illuminator ClassN/A
• IR Illuminator Output0.7mw
• IR Pointer ClassN/A
• IR Pointer Output0.1mw(low)/0.7mw(high)
• Visible Laser ClassIIIA
• Visible Laser Output1mw(low)/5mw(high)
